Sounds okay

Couple of bits and bobs arrived in the post today:

Some brass-plated hinges for the next project, a silicone hose adapter to try to improve dust extraction from the bandsaw:

Beats a spring clamp and a bungee cord.
And this little doodad as well:

I’ve been wondering how bad the noise from the shed actually is for the neighbours you see. Enter the Uni-T UT353, a cheap little noise meter from Shenzen. And after a wee bit of experimentation, some pleasant results – the loudest thing with the bandsaw running is the vacuum cleaner that does dust extraction. It’s 87dbA in the shed itself with the door shut; 65dbA just outside on the decking; and it’s 55dbA back on the patio by the back door (for reference, it’s 65dbA inside the kitchen with junior watching Rescue Bots and the other usual sounds of life).

Now, start cutting wood and that does change a bit – 102dbA inside the shed, 83dbA on the decking and 74dbA back by the house. But that’s still only up there with a car driving past, not the you-definitely-need-hearing-protection levels that were my only experience of it so far (because I’m in the shed you see).

So that’s nice to know. I don’t think I’ll be getting anything noisier (the sander is rated at 76dBA) and frankly I don’t want to; and I limit the hours I use the bandsaw to anyway because people have to work (and anyway, apart from the boxes, I don’t use it for much beyond rough cuts).

Tonight for example, I took some of that 8/4 oak which I’d rough-sawn (by hand because it wouldn’t fit in the bandsaw) to about 1′ lengths, and I trimmed off the damaged edges (pack straps tend to mangle those) using the bandsaw.

I should get the four pieces I need from that for the next project without much trouble. I just planed the sides flat and marked a centerline; I’ll cut that in half tomorrow and then in halves again, and then trim the depth on the bandsaw (because thicknessing from 8/4 to 6/4 is a bit much even for a scrub plane like Sid). I’m taking this slow in the (probably vain) hope that’ll minimise the wood suddenly jumping into twist or warp or cup or bow…

Then some mucking about with the legs and checking faces&edges and planning the profiling of the legs and whipping up a quick check-piece from a poplar scrap to see if the thing in my head looked the way I thought it would when I see it in real life:

I like the tapering off towards the back of the leg, not quite like an aerofoil shape but the same kind of idea. I think it’ll give it an interesting look (it won’t be quite so asymmetrical, but the size of that piece made it hard to hold which made it more awkward than it will be for a full-size leg).

And then I just laid out the tools for tomorrow and closed up the shed.

Quiet night tonight, I guess I’m just tired from the sudden arrival of winter…

Ending, restocking, brexit and black friday

Looooong day. I had a callout over the weekend at midnight on Saturday so I had a few hours off in lieu that I took this morning to go to the timber yard. One of the next projects coming up could use some 8/4 oak so my shopping list was a 6-8″ board of 8/4 oak between 8′ and 12′, an 8-9″ board of 4/4 oak around the 12′ mark, and possibly the same two boards again in walnut. And I thought I’d take a look at the beech and get a small board of that to try working in it.

You know how plans rarely survive contact with reality?

So, Brexit. And now any timberyard here in Ireland has a choice – either get hardwoods direct from the continent via ship which is more expensive than road haulage; or buy it from the continent and drive it back home through the UK with all the customs hassle on both coasts which is expensive; or do what they’ve done till now and buy smaller quantities from UK timberyards and ship it back on the ferry to here, but now paying higher prices because the pound has collapsed, and next year, paying higher prices again because the UK is having to pay customs duties of 20% or more on their imports from the EU (because the UK does not grow enough timber for itself and hasn’t since the 18th century), and then paying higher prices again because of customs duties re-importing that timber back here.

The shorter version of that is, Because Brexit, hardwood now costs 150% or so of what it cost this time last year. Except maybe for that german beech, which I think was roughly the same.

(Oh, and forget about looking to the US, they’ve finished one round of 20% tarrifs on canadian softwood and the entire softwood and hardwood market rising to match that, and they’re now looking at another 20% round Real Soon Now).

So, 8/4 oak board? No worries, Paul had an 8′ board from the end of a pack. Grand for me, no knots, no damage, slight cup but the parts I’ll be making are 1′ or shorter so that’s no worry. But it’s €60/cb.ft. The 4/4 oak is around €45/cb.ft, up from €30. The 4/4 walnut is closing on €90/cb.ft and the 8/4 walnut… well, the one board I’d picked out (8/4 6″x10′) was €140. Alas, it remains in the warehouse 😀

The beech on the other hand, was beautiful stuff, I had the first pick from a freshly opened pack and it had lovely clear grain, so I wound up buying two cubic feet in four boards, way more than I intended to but it was just so damn nice looking and so cheap compared to the rest (at around €24/cb.ft) that I thought it would have been a mistake to leave it behind.

A few minutes with the circular saw to break it down enough to fit in both my car and the shed, and then it was time to test the new car’s timber carrying capacity (the old car gave up the ghost earlier this year and we had to change).

Huzzah! It took all of three minutes to pull those seats last night (they’re built to lift right out, it’s quite neat and tidy) and once loaded I could close the boot and drive home without any fuss. Score one for the Yeti.

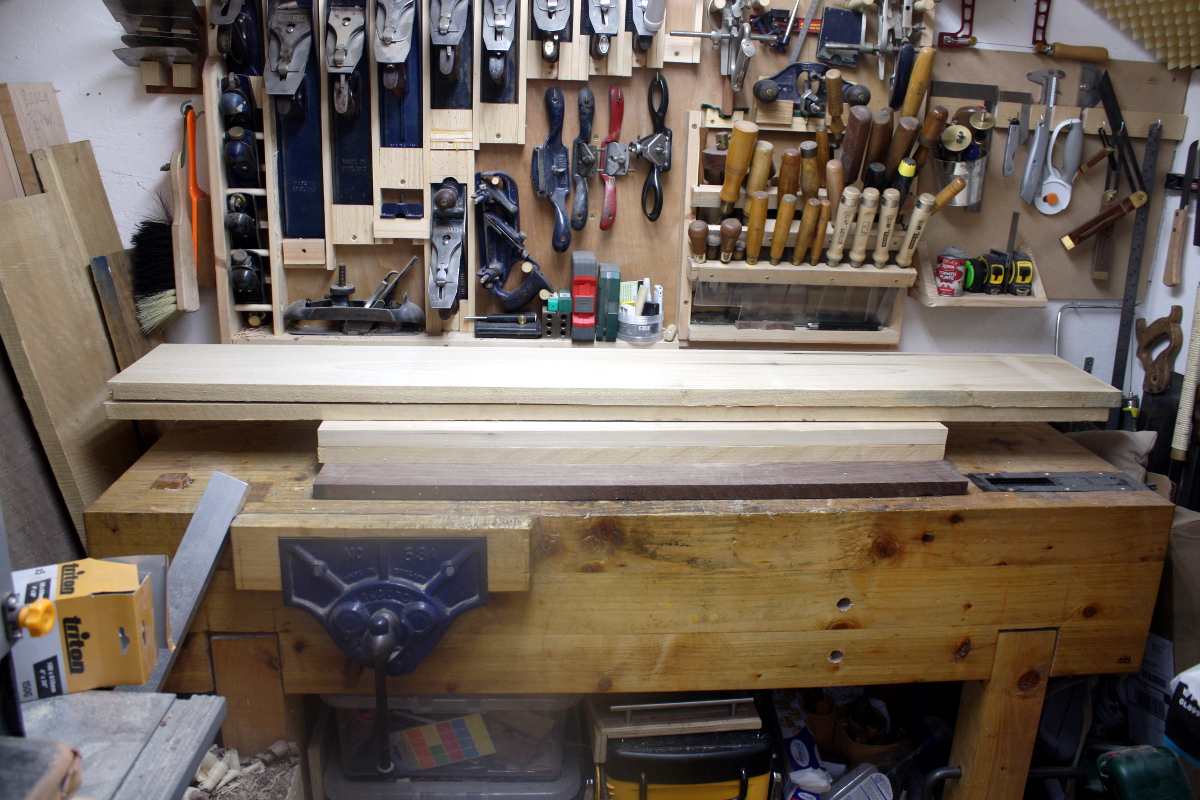

Once I got it home, I had to clean up the shed slightly – the floor had about 3″ of shavings and crud built up on it because of the rush on the boxes, so that had to go and the timber store had to be quickly shuffled to make some room, and then it was the haul-it-through-the-house routine:

Nice piece of 8/4 oak there.

And there’s that lovely beech’s grain and the other half of the 8/4 oak board. But all of that has to go in here somehow:

There was considerable shuffling 😀 But…

Done! 😀 Just don’t ask me to get anything out of there in less than half an hour…

And cleaned down and ready for the next project (or more accurately to go back to the one I was in the middle of when I stopped to do the boxes).

Speaking of the boxes…

The oak was a disaster:

Just tore themselves apart along the glue lines after the ebonising (and the ebonising didn’t go well, I think some of the tannic acid got into the iron solution and nullified it, I’ll have to make some more). So those got ditched. But the rest were okay.

Dropped those off at the school in the afternoon for the bazaar and they hadn’t a clue what to do with them so they’re lumped in with the bric-a-brac. Oh well, might get them a bit more notice next year. This year though, someone’s getting handmade boxes rather cheaply 😀

It’ll be interesting to see if they actually do sell, if they do I might make a piece explicitly to sell next year, just to see if it would.



Oh, and today’s Black Friday, so I bought a sander 😀

(along with a few belts and spindles for medium and fine grades to go with the coarse set it comes with). I know it *looks* like a fancy version of a belt sander turned on its side, but it’s a bit better than that. For a start, better dust collection and about 26dBA quieter 😀 Plus, you can swap out the belt for a spindle to do curved surfaces:

And of course, it has built-in storage all over the place which is nice (but doubtless not enough if you have more than one grade of sandpaper). So I’ll build a plywood platform for it and a 2×4 framework to let me store it below the bandsaw. Getting cramped in the shed now though…

And Rutlands were also doing a sale so I got some more titebond (I’m down to my last bottle), a spare silicone glue brush set (because I’m always waiting for the two brushes I have to finish drying before I can use them again), and some other small doodads and gimmicks like plastic razor blades. But hey, if amateurs don’t buy this stuff, who will? 😀

Smells like respiratory irritants…

I seriously need a better sanding arrangement. Roll on black friday.

Not to mention, the goggles could be more comfortable.

But at least the boxes have seen progress…

About a third were done with shaping-level sanding, about another third just had to have drawer pulls fitted, and the remaining third were still being assembled or needed serious shaping (meaning another belt sander session).

Some sorting, some test fitting, and some glueing up later and then I left everything overnight to cure. The following day I found that one of the oak boxes had had a side slip during glue-up, so it needs more shaping on the belt sander, and two of the other boxes are in the same boat; the dremel came out to do some tweaking whereupon I discovered that my sanding mandrel was missing, presumed lost 🙁 Need to go pay five times the fair price for one now on the way home from work today. Gah.

But the rest of the glueups went well, several of the boxes were hand-sanded up to 240 grit and then I started on the finishing for some of them with danish oil for the ash and sapele boxes:

Gotta love the way that colour comes out…

The oak and poplar pencilbox got the danish oil as well; this one would be too hard to ebonise the oak part for so we’ll just go with the oil I think.

The small sapele box got finished while waiting on its drawer. Too little time to wait and do it all at once.

The ash is nice, but it really can’t hold up to the sapele. After the danish oil, I’ll be giving this a few coats of shellac and then some poly over the top for toughness and some paste wax and buffing for shine. The sapele and the oak&poplar will get something similar (but the ash and sapele get blond shellac while the oak&polar gets garnet or button shellac).

The other poplar boxes will just get a sanding sealer coat (aka blond shellac mixed down from a 2-pound cut to a 1/2-pound cut), then a light sanding with fine paper and then milk paint over that and then poly varnish and a wax buffing.

The oak boxes (including this oak and poplar one) will see the oak ebonised as before, with one small change – that foam in the oak shavings tea is washing-up liquid acting as a surfactant to spread the tea deeper into the wood grain (and I’ll do the same for the iron solution). Nice tip from custard on the UK woodworking forum, that.

That oak and poplar box might turn out interesting – the “drawer pull” is a flush extension of the box, and it’ll get the sanding sealer + milk paint treatment of the other poplar boxes; the contrast between the black of the ebonised oak and the colour of the milk paint might be interesting.

And that’s where I left it. After work today, there’s some shaping sanding to do on the belt sander, some finer hand sanding and then we’re into nothing but finishing because these have to be ready by Friday morning…

And then on Friday, it’s off to the timber yard to get some more oak and walnut (and maybe something else if they have anything interesting to hand). And after that, black friday sales and after talking to the guys using them, I think I won’t be getting one of the Record BDS150 sanders:

Which looked okay but which apparently have a disk that’s unusably small (and a faff to change the paper on), and a table that’s just a bit dodgy to use and set up. Instead, it looks more like getting one of the Triton oscillating belt/bobbin sanders:

It’s a clone of the original Rigid:

But the clones are smaller in footprint (several other makers from Grizzly to Rutlands to Clarke all make the same thing in different colours). You lose the mitre slot, but on the plus side, the clones would actually fit through the door of the shed, which is a positive. I’ll have to build a quick 2×4 storage stand to put the bandsaw on and the sander under though, there’s no room otherwise.

But on the other hand, it’s about 26dBA quieter than the belt-sander-and-holdfasts approach I’m stuck with now, and it actually *has* dust extraction. Which is kindof a good thing if you like, you know, breathing…

Interloper

So it’s pretty obvious that all my woodworking stuff is done with hand tools, right?

It’s not because of an ideology, it’s because 8’x6′ sheds don’t give you a lot of room for power tools or machinery. I do find the power tools really obnoxiously loud, but that’s a secondary point and it’s mainly because the cheap modern power tools tend to use lightweight construction and universal motors in order to hit a price point and so make a lot of high-pitched noise — older stuff with induction motors and a lot of cast iron are a lot less screechy (you definitely do need hearing protection anyway, but for the neighbours it’s a significant qualitative difference).

And for some things – joinery, shaping, finishing and so on – it’s more of a challenge to use hand tools and so more satisfying to do. But there are some tasks that just don’t have that challenge. I should say for the non-woodworkers here that the whole “what really counts as hand tool woodworking?” question is a long-running one. My answer is that if it’s a task that in the 18th century was handed off to apprentices to go do unsupervised, well, handing it off to a machine isn’t really showing a lack of ability, just a lack of time.

All of which prevarication is a run-up to saying I’ve bought a new power tool for the first time in a long while.

Well, what else is a husband supposed to do on a day off while the wife is off visiting her sister? Exactly, bandsaws.

This is one of those rebadged clones of the Record Power BS9, there are a few dozen manufacturers selling them – Craftsman have the BAS230, Ryobi have the BS903, Scheppach the HBS20, Einhell the TC-SB200, Charnwood the W711, Titan does the TTB705BDS and Aldi sell a WorkZone variant as well. The Aldi one was the one that caught my eye initially as it seemed it would fit in the shed based on Peter Millard’s video about using it in the shop; and he also pointed out that for the money and the size (and within its design parameter), it was a nice little design that was worth having around:

So I was waiting for the Aldi version to show up again, but that didn’t look like it was happening this year so I trotted off to Screwfix to order the Titan (ordering or buying off the shelf in any Dublin shop would have doubled the pricetag).

The nice delivery man showed up this morning with the box so off I trotted to the shed with and unpacked it.

Then, a quick check of the alignment of the blade — see the quick setup guide by Alex Snodgrass here:

I was pleasantly surprised by the guides in the Titan; rather than the thrust bearing’s face being the point of contact with the blade, it’s the bearing’s edge that makes contact. That’s a better solution but slightly more expensive to make. One of the myriad small differences between the variants of this design I suppose, along with nice touches like the little window to check blade tracking without opening the case:

There are less fun bits – the screw latches of the case aren’t captive nuts opened by a single half-twist, but full-on ten-turns-to-latch bolts. And the bottom door isn’t fully closed at the top when the bolt is fully seated. But the blade seems to run quite true and the supplied blade is quite clean-cutting. I do have three others coming from Tuffsaws – a fine quarter-inch blade for curves, a three-eights inch blade for general work and a half-inch blade for heavier work, though “heavier work” here is quite relative – this is never going to resaw anything wider than 70mm.

I didn’t abandon the hand tools when building the base at least 😀 The base gets holdfast-ed down to the bench for work.

Of course, it can’t live on the bench, the only place for it is down on the floor (with the blade guide dropped right down to protect the blade of course). Just … right… down… there.

Ah. Right. I have been putting off the tidy up and clamp storage job for a while, haven’t I? Oh well.

One afternoon later…

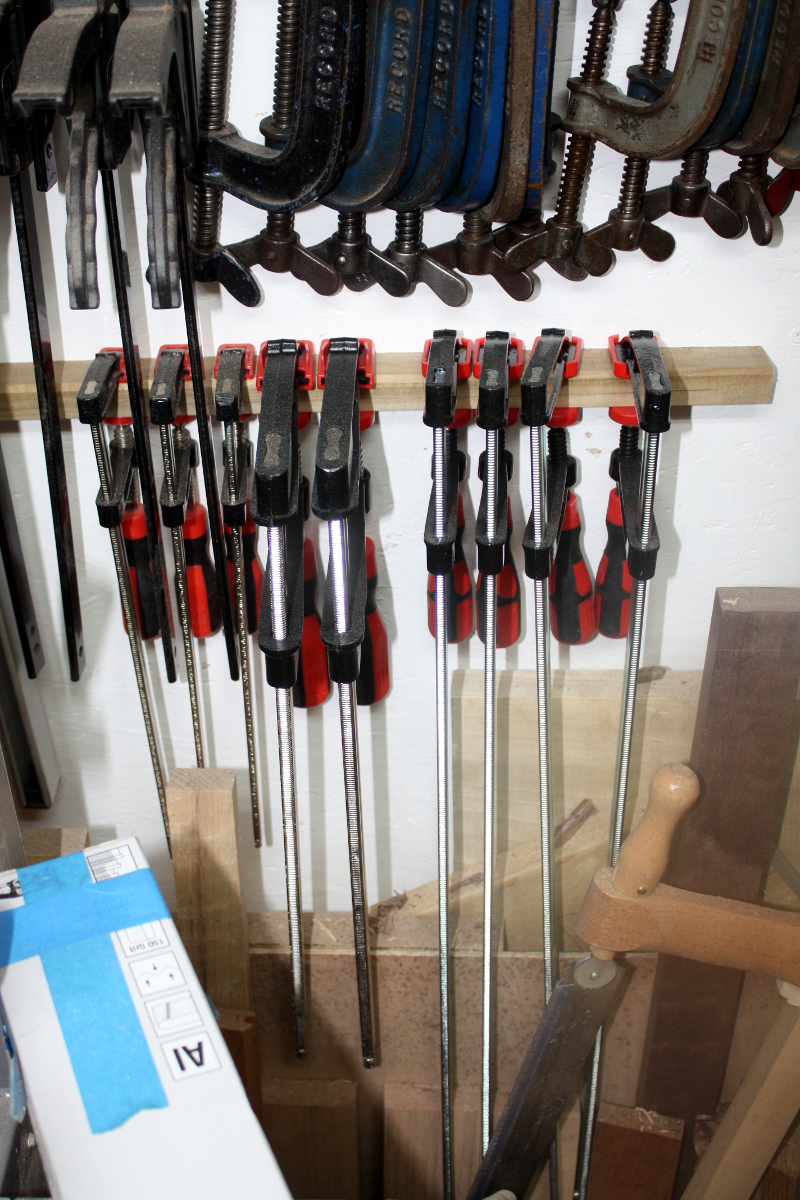

Clear floor space and as to the clamps…

Much tidier. So from now on, the bandsaw lives here:

So this should help with some rough work, and I wouldn’t mind trying to make a bandsaw box or two. I have a bunch of tiny scraps of walnut left over from the cot that I have been trying to find a use for.

The glue should be dry by tomorrow, and then I can give it a go…

Scraping by…

Part of the tidy-up in the shed meant getting the scrapers off the little holder they were in and up on the wall…

And then the second thing was going through every single plane and chisel on the wall, going over all the unpainted parts with 600 grit wet&dry paper and WD40 to take off the surface rust, then rubbing briwax into the steel as a barrier against rust (renaissance wax would be better and some’s on the way). I’ll have to do this every weekend for a while to get the barrier layer set up properly.

I hate condensation. Gah.

There may be a dehumidifier in the shed’s future.

One slot left…

Honestly, the plan was not to collect planes.

But through random chance the first few I bought (I bought a retiree’s toolkit off ebay as a starting point) were all Record planes. And over the course of a few months I learned, as everyone does, that hand tool woodworking was effectively killed off during the second world war, though it had been in decline for a while before then. Machines and power tools took over for wood fabrication; and after that point, tool companies could no longer compete by producing the best tools because workers were no longer competing on how fast they could do the job to a set standard. Nobody needs to spend a weeks wages to buy a saw that can be sharpened more so you can cut 5% faster, when they can spend that much and get a saw that cuts 500% faster. The demographics of buyers changed markedly and suddenly a tool that would stand up to occasional weekend use and not cost a week’s wages was the thing that was in demand (and thus was born things like Black and Decker). Older tool companies either changed (like Stanley) or went bust or were bought up in mergers (like Woden) and so there’s this quality curve that takes a slow or a fast decline at some point after the end of WW2 for every hand tool manufacturer. Older tools are substantially better than modern ones from companies like this; you have to go to the modern artisan makers like Veritas or Lie Nielson to beat the vintage stuff. And that’s seriously expensive by comparison so most people go vintage, at least in the beginning where I am.

Now Stanley were the main brand for almost a century (and are still around) so if you go to ebay and try to buy an old hand plane, they tend to pop up first. But there were so many, identifying them is an expert’s task – is this one a bargain that’ll work like a charm for decades or is it only fit to be melted down for scrap, not even worth the postage? So instead, I just kept looking for Record because they didn’t dive down the curve for a few years later than Stanley and they’re relatively easy to date even from ebay photos.

So my #4, my #4½ and my #5½ got joined by a #7 and a spokeshave and a shoulder plane and a rabbetting plane and so on, all from Record’s catalogues as I thought I’d need them. And then one day I turned around and aw, crap, I have a collection of the sodding things.

Well, now look where I’m stuck.

Every slot filled, with planes for getting things straight, getting things curved, carving slots or rebates into things, and so on. But two empty slots got build in there, for the last two obvious things I’d “use” – a large Record #8 jointer plane and a small Record #2 smoothing plane.

Well….

Came up on ebay and I couldn’t resist. Old too, this is from somewhere in the 1945-1950 range based on its design, frog, blade and handles.

Just that bit larger than the #7, so handier for some things. A tad rusty though and the paint had worn through in places. Well, sod collecting, I want a usable tool so…

Then out with the newly mounted wire wheel on the bench grinder and off with all the accumulated rust (and I tidied up the #6 while I was at it, as someone had painted that thing almost purple in the last while and it annoys me).

A bit hard to read but “Best Crucible Cast” there indicates that this is one of the better blades Record ever made. And the sharp corners suggest this is laminated but I’d have to grind the bevel off to find out and I’m not that curious.
Then out with the heresy Hammerite paint and sprayed both the #8 and the #6 (I may redo this if I ever find a decent source of the original Record colour, but I seem to recall it was oven enamel and that’s a bit of a faff).

Then we had a hurricane and work had a Thing and so it was left drying for several weeks all told. Yikes. So this weekend, back out to the shed, tidied up a lot, reassembled both planes, spent a while taking rust off damn near every tool (the shed’s damper than I thought and the felt in the tool racks now counts as a Bad Idea) and oiling them (WD40 at least) and finally…

Almost done.

Yeah, “almost”.

See that little spot? There? That one?

Yeah, that’s kindof my little joke. It’s for a Record #2 plane.

They never made a #1, Stanley did that and these days those go for five-figure sums to collectors. But Record’s #2 still goes for stupid money, when you can find them at all. They didn’t make as many as they did of the workhorse #4s and #5s or even of the fancy #7s and #8s and when the second world war happened they went out of production in a hurry – and when there’s a war on, lots of metal gets melted down to make gun barrels and the #2 was a small smoothing plane for fine work; nobody really had a use for them that a #3 couldn’t fulfill so off to the crucible a lot of them went (same happened to the Stanley #1s). Oh well. They’re not as crazy as the Stanley #1s, but the last time I saw one on ebay, it sold at the asking price of almost €400 within 12 hours of being posted.

Yeah, that slot’s staying empty for a while longer I think 😀

But at least the shed’s been tidied up a tad so I can start doing things again…

French cleats and bench grinders

So I’ve said once or twelve times that I needed to do something about this stuff in the shed:

The little air compressor proved useless for shellac and stuff so it’s moved indoors to the lab for future mucking about with airfix models with junior and the like. The dremel, well, that’s handy for stuff so it still lives there, but the grinder was just a pain in the fundament. It’s on an MDF base with a small cleat on the bottom for the Black&Decker Workmate to grab onto (or the vice on the bench these days). So I finally got round to fixing that up and getting it out from underfoot.

Smaller base, cleat at the front end to act like a bench hook and a holdfast at the back keeps it nice and stable (the base tends to cup a bit, I don’t think it’ll last forever). Pulled the stone on one side (the finer grit stone because if I need that grit, I just use sandpaper for the scary sharp method or I use the diamond stones – I’ve never used that fine grinder stone since I got it) and put a wire wheel on there to help clean up rust off some older tools. The wire wheel wouldn’t fit in the guard, so I lost it.

If that cleat looks familiar, it’s because you’ve watched woodworking videos on youtube in the last decade. It’s a french cleat with a matching cleat on the wall.

So now it’s out from underfoot and positioned perfectly to remove an eyeball as you enter the shed. Who really needs to look to the left though?

Cleared the bench…

Finally got the last of the tools off the bench and onto the wall by building a small holder for the drills from a hardwood offcut and some recycled plywood. And managed to get a rebate and some stopped dados in as practice 😀

The shed is now finally looking like a proper workshop. I mean, it’s not done yet – the western saws need to go up on the wall too (another magnetic tool rack for them I think, and mount them below the japanese saws – lidl didn’t have any left so ebay it’ll be), and I do need to do something with the grinder and the airbrush, which will probably mean french cleats of some kind and probably redoing the mounting board for the grinder. But for now, it’s not too bad.

Yeah, okay, there’s a huge mess to the right hand side. That’s a bunch of boards rough-cut down to components for some small tables I’m going to build, and they’ve accumulated crap on top of them as any flat space does. I’ll have to tidy up the shed during the week.

But at least now I can work on something that’ll actually leave the shed instead of living there until I recycle it 😀

Oh, and a new moisture meter and thermometer as well. No huge reason for one, I just came across it while buying something else on aliexpress and it cost just under two euro shipped so what the hell.

Racked

It’s been one of those weeks where you don’t get a huge amount of time in the shed, but the chisel rack is finally done. And I have new toys…

The breast drill was in spectacularly good condition for something made somewhere in the 1950s. And used too, there are small marks here and there on it that say this thing wasn’t living in its original packaging until now. And with it, that’s almost all the hand drills I want (I wouldn’t mind a small push-drill for very small holes, 2mm and below, but I don’t need that for anything in the immediate short-term future; but for some tasks, like alignment pins for glueups, a 2mm drill and toothpicks are useful). But for now, I have two eggbeaters, a full set of braces and the breast drill in between the two (there’s a progression through the drills depending on how big the hole diameter is and how hard it will be to drill – you start with the eggbeaters up to about 5mm, then the breast drill from 5mm up to about 10mm, then the braces from then on, using larger braces as you need more torque. There’s some overlap rather than hard dividing lines, but it’s a decent rule of thumb).
And I can have drills dedicated to countersink bits as well, which speeds things up.

And I bought some slightly more specialist gauges as well.

Up top, a grasshopper gauge, which gets used to mark things when the reference face is a bit awkward to get to, and on the bottom is a panel gauge for glued-up panels (made from mahogany so it’s fairly old as well).

But about that chisel rack. The idea was to try to get all the chisels I use up on the wall, along with the gouges, and the usual design, the one I used until now, has disadvantages.

So this is grand if you have space, but if you are limited to 18″ or so of width for the chisels, you can’t get quite so many in and while you can stack them as shown here, you have to stagger them out away from the wall, and there’s not much room for that in my shed. And they have a weakness in that there’s short grain between the holes, so unless you make them from plywood or a more durable hardwood, you can snap out the between-holes chunks pretty readily (either while making them or while using them). And most of my shed stuff is made from fairly cheap pine bought from wherever was handiest (so usually Woodies, and their pine is terrible). So I wanted a design that let me stagger racks without having to come out more than three or four inches from the wall and which avoided the short grain problem.

So here’s the idea:

You have a short length at an angle, you put small cut-blocks behind it to keep the chisels sliding to the left or right, and you have something on the wall that the edge rests on.

And now we just need the shelf-like things on the wall for the edges to rest against.

The edges are angled and covered with felt so that the edges hit them at around 90° and don’t destroy the edge too much. I also put some perspex in front of the chisel racks so I couldn’t accidentally shove my hand into five or six chisel edges if I wasn’t thinking and reached for a measuring tape while facing the vice or some similar whoopsie.

Now, time to load the chisels up.

(And yes, take the time to sharpen and strop each as they go in, because why not?). Bevel-edged chisels first.

Then the firmer chisels, including my new 2″ wide cast steel monster, which is very nearly a slick.

And then the four gouges (there’s room on that rack for a few more chisels yet).

And that’s that done. The racks are held in with screws and the frame they screw into is screwed and glued in place, so if I need to tweak the racks or add new chisels, that should be reasonably easy.
(Note the fretsaw and coping saw got moved on the wall and lidl were selling magnetic tool racks so I cheated and got the japanese saws all up on the wall beside the hammers – the western saws will go below them with the blades pointed down so there’s a “safe reaching zone” in the middle to stick your hand into to grab any of the saws).

And that’s almost all that now. Need to get the scrapers a new holder on the wall somewhere, the old one has gotten loose (well, it was five saw cuts in an offcut from a 2×4). And the drills all need to go up on the wall as well. I have an idea in mind for that, but where exactly on the walls it’ll go I don’t know yet.

But I also have a project I’ve been wanting to do (and gotten a little done on already) and part of me just wants to get the shed furniture bit out of the way as fast as possible and get on with that, but with all the tools in the way, that’s going to be a tad difficult 😀
Plus, having the saws and hammers literally at my fingertips has sped things up at the bench far more than I thought it would. So having the drills to hand would be worth the effort.

I just need to figure out where the hell they’re going to go, I’m running out of wall…

Tooltris continued…

As I mentioned last time, it’s a nice problem to have, but it’s still nicer when you solve it 😀

So it’s mostly a conventional plane rack, with a few quirky bits for the non-bench planes. Here’s the map:

Bench planes make up most of the area, with the T5 over on the far left because of its handle, the blocks below that because that was all the room there was, the compass plane sitting on a shelf, and the various plough planes and rebate planes and router planes in various holders, and the spokeshaves on hooks.

Nicked the general idea for this from here. Though mine’s less fancy 😀

The #044, #043 and #055C plane housings are just pegs and small boards or cutouts in the frame to keep everything aligned. Gravity does the rest, along with the extra friction from the felt. The #043 mount might need some more work but it seems okay for now.

The #722 mount looks like this but there’s a small cap across the top to bridge the gap now. Works very well if I do say so myself.

And the block planes get small cubbies, but with a bar in front of each one to ensure the plane is at a steep angle; that way I can stack four in that space without coming away from the wall too much.

The spokeshaves and the #080 were a bit easier to build 😀

I still have to build the chisel racks (I have a nice idea for those) and there’s a small area for screwdrivers and such as well, and I want to have a space for the spare irons and the blade sets from the combination planes up in that top right corner; that has to be built yet as well but it won’t be anything fancy.

All that’s not complete either, there’s the toe cap for the bench planes and a header to add, but I wanted to mount it on the wall first:

24 5mm screws, because only five of those are in studs. And it is a lot of cast iron. But it seems okay so far…

Anyway, with it on the wall, I could add the toe cap:

More glue and screw construction here, this isn’t going to win awards, it’s shed furniture. A bit of felt along the top as well, because I’ll attach a header in front of that to make a shelf:

And done. Had to fettle the ends of the shelf a bit with the spokeshave, but it fits, and more glue and screws later, here we are. Everything fits. I still have space for a #08, which I’ll get as soon as one in decent condition shows up on ebay for less than the price of its weight in platinum, and for a #02, which won’t ever show up for as low a price as its weight in platinum, but that’s collectors items for you. I’m holding its space for when I find one going for €5 in a car boot sale 😀

Things are starting to get a bit tidier at last. I still have to sort out the drills and the saws though. I’ll probably move the fret and coping saw from where they are now over to the left side, put the drills where they are now and put the saws beneath them and the hammers. Or I’ll put the drills on the front wall of the shed, behind me as I face the bench. Not sure yet. And of course, now that everything has a place, I’ll buy something else that’ll need more room than I have, like two more braces.

Not to mention the breast drill that’s still in the post…

But next job is definitely going to have to be that chisel rack. The chisels have gone back into a tool roll, and using those things is a pain in the fundament…
