Hey Presto-n…

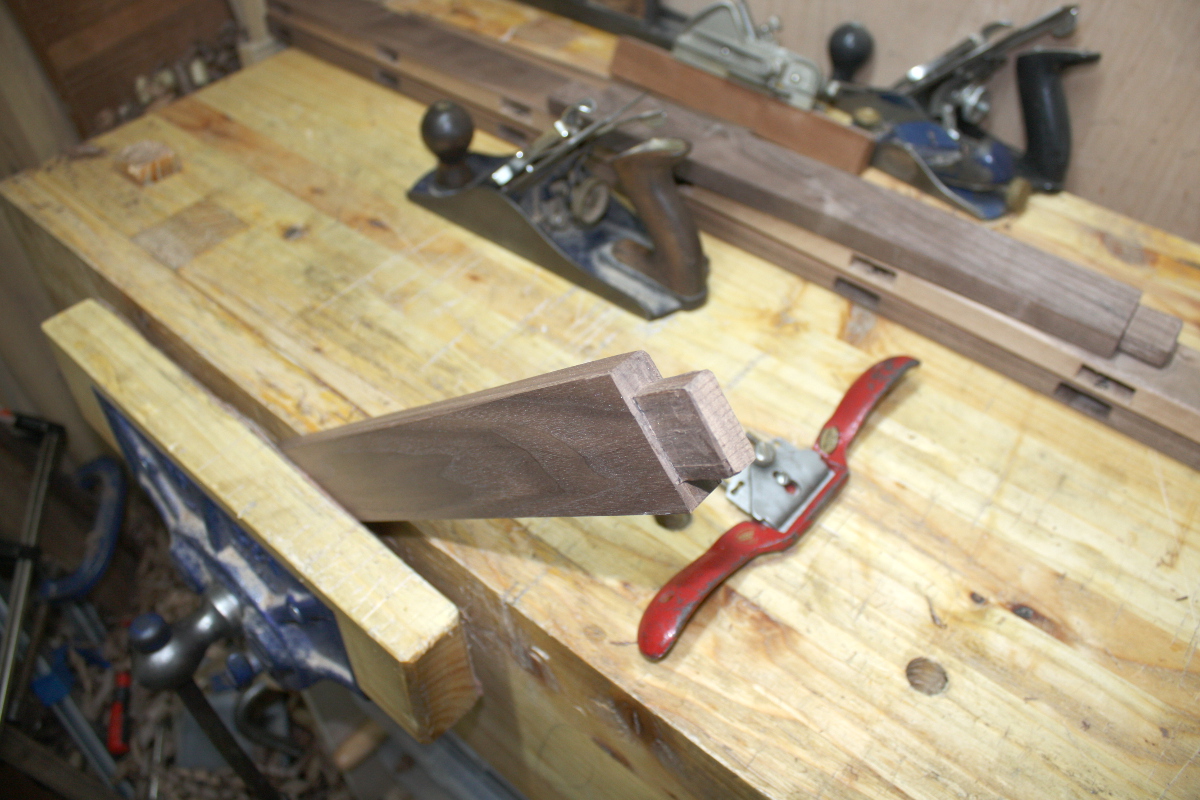

Another new toy today. While building the crib, my favorite tool very quickly became my Record 151 spokeshave.

It’s a really simple little tool and works brilliantly one you follow Richard Maguire’s tip and take off the adjustment knobs because you can’t ever get them both to agree well enough to keep the blade properly adjusted, so instead you just clamp the blade with the cap and set it with a hammer (which is a much finer adjustment than it sounds). It’s brilliant for anything with curves, or for rounding over sharp corners quickly for that matter.

But.

While it’s a lovely tool to work with, and far beyond cheapo Drapers and the like (I don’t care what Paul Sellars says on that one, I’ve seen the Draper spokeshave and it’s just manky), it does have faults. The casting of the body does not match the cap perfectly, for example – there are lugs on the sides of the lever cap that should fit into the body, but there’s a good 3-4mm of a gap because the tolerances weren’t finer. And you can set the blade further forward very readily and surprisingly delicately with a hammer, but you can’t retract it with the hammer, you have to undo the cap and reseat the blade back at the start and advance it again with the hammer, which can be annoying at times. It does the job, but I keep thinking there are things that can do the job better.

Well, probably the best out there right now according to everyone with a few hundred euro to drop on a spokeshave, is this:

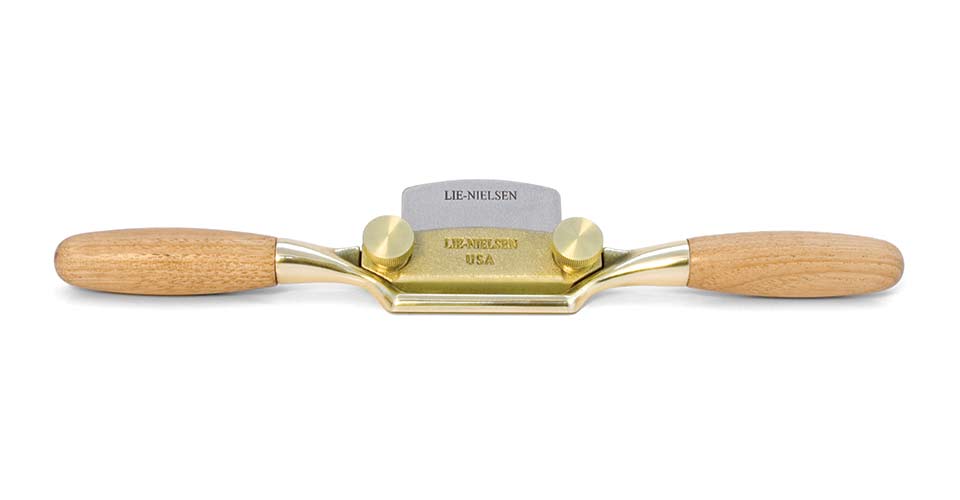

That’s a Lee Nielson Boggs Spokeshave (Boggs being the rather accomplished chairmaker who designed it). And if you have approximately twenty times the price I paid for my 151, you can test it to find out 😀

Me, I went a different way and chased after a Preston. Edward Preston & Sons were the Lee Nielson of their day, arguably at the very top of the toolmaking world from around 1825 to somewhere between 1911 (when Edward Preston died) and 1932 (when the company was bought by Rabone). Unlike most of the other manufacturers who seem to have mostly copied stanley designs, the preston tools were markedly different. And their spokeshaves were neat, elegant, and clever. They had a well-known design (the 1391) that had very decorative casting:

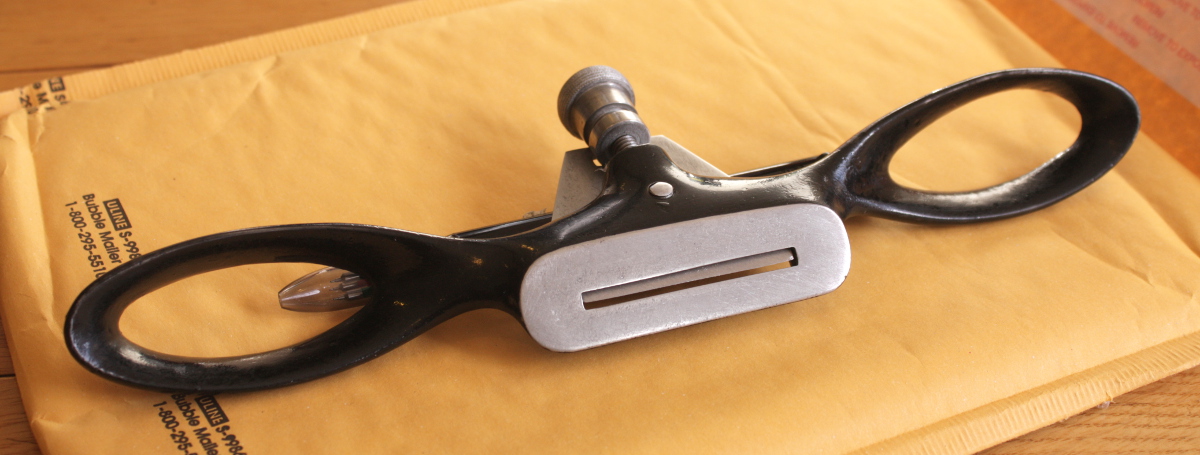

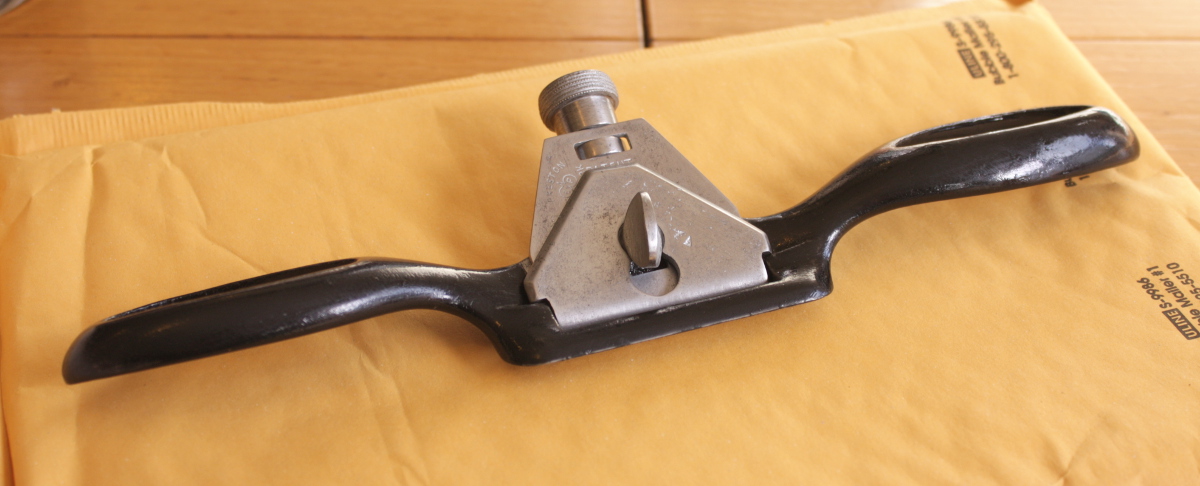

But as good as it’s supposed to have been, I just didn’t like the look of it, so I went after their plainer version and finally managed to get a good example of one for, okay, just shy of forty euro including postage, but that’s still a third the price of the Lee Nielson. And just look at how pretty it is!

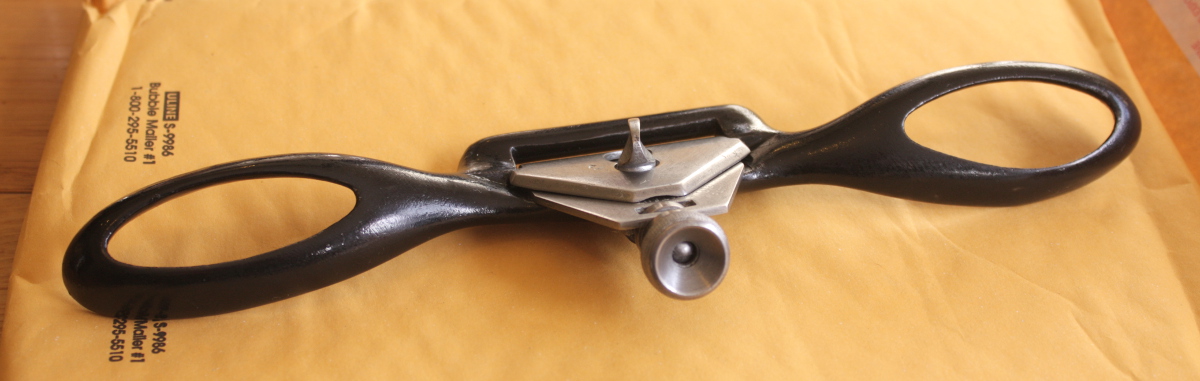

It’s been restored and it looks absolutely magnificent. And note that there’s only one adjustment knob so you don’t have to worry about misaligning the blade by not being in sync with both knobs, so you don’t need to adjust it with a hammer.

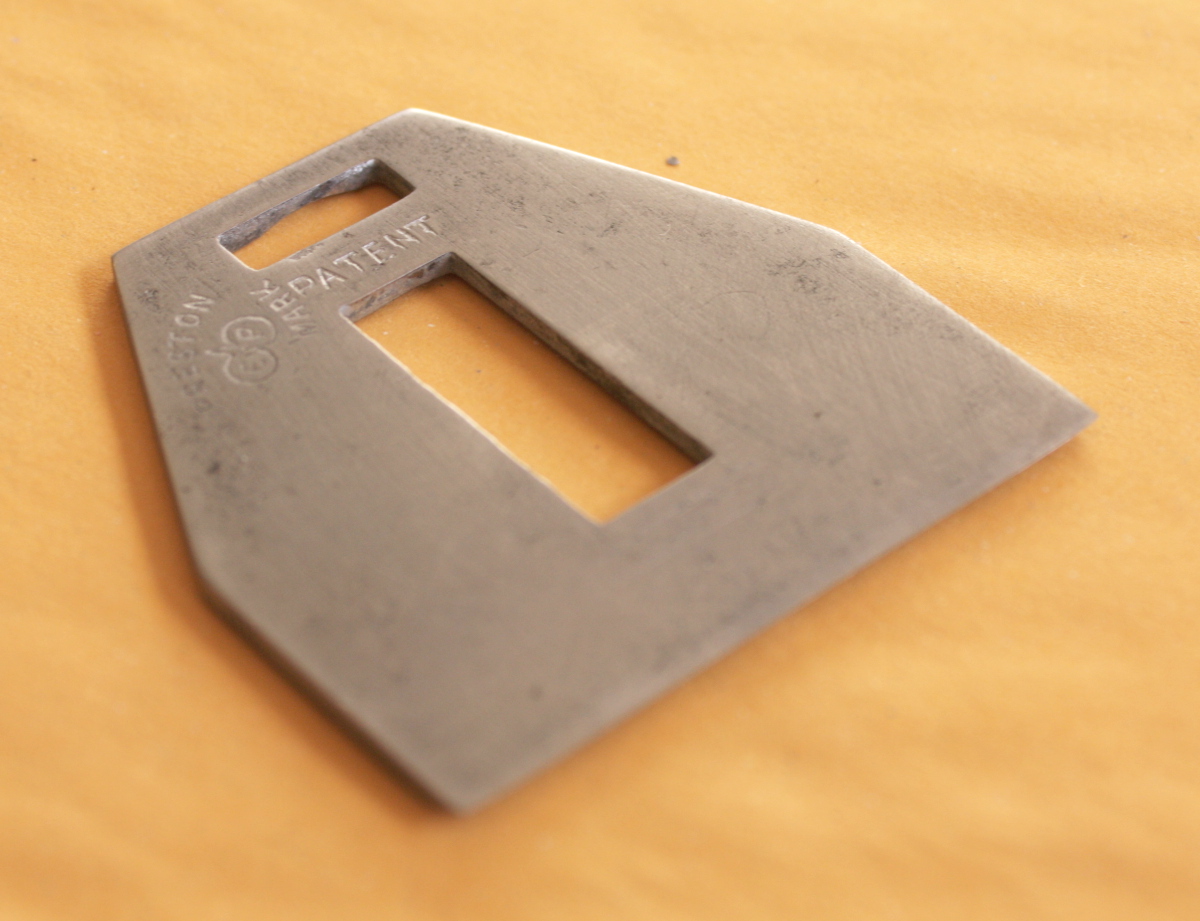

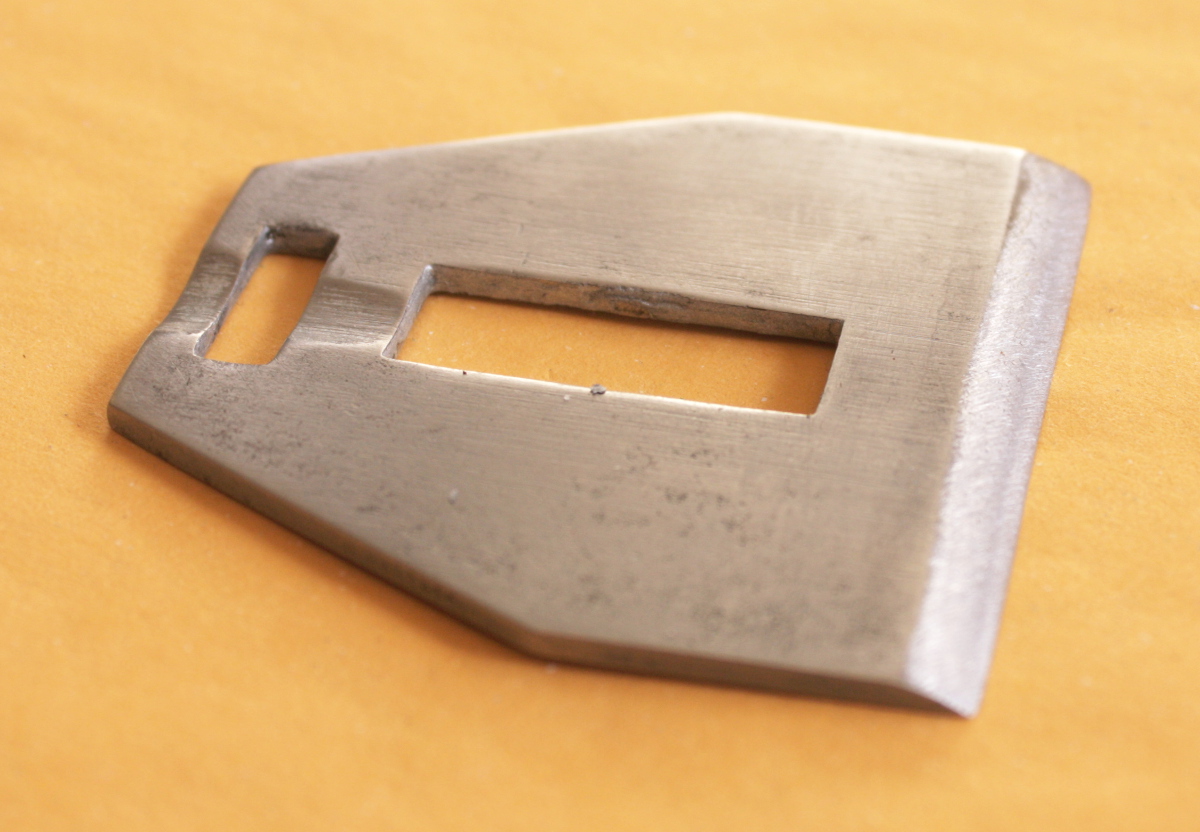

And the blade looks almost unused:

I’ll have to make a new sharpening holder for it, but it’s got enough steel there for a while longer yet, and Ray Iles makes replacement blades today for about 15 euro-ish.

Now, I just need to think of a new project to use it on 😀

New toys…

Not been spending much time in the shed since the cot was delivered (and it fits, and Niece fits into it as well so yay!), but I have spent a few minutes on ebay. Or a few more than a few 🙂 There are still a few more things I want based on the fun of making the cot, but I have most of them now and I’m content to wait for decent prices&conditions on ebay. Especially since Brexit is about to take the price of tools on ebay.co.uk and throw them off a cliff…

Butt first…

Narex butt chisels. Or “American Pattern Chisels” if you’re (very) British. Basically, shorter blades and handles than the normal bench chisel:

When I was doing the dovetailing of the drawer in the cot, the chisels I had weren’t bad — but they definitely had some room for improvement and I’ve been looking at some Ashley Iles chisels for a while but they’re a wee bit expensive (over a hundred sterling or so for a set of six and there’s a bit of a back order wait because they’re handmade). So before buying those I wanted to try using a few different styles of chisel to get a better idea of what worked best for me; and Richard McGuire’s been an advocate of the smaller butt chisels for this kind of work so I thought I’d try them and there were two Narex chisels on ebay one day for about ten euro each. Narex aren’t the best in the world by a long shot, but they’re kindof the modern equivalent to Footprint I guess; decent working tools. So we’ll see if the style of chisel lives up to expectations over the next few months and then I can decide about whether or not to drop ten times that much on a set of “luxury” dovetail chisels. And I might buy a japanese chisel and an elliptical profile chisel as well if they show up cheaply, just to see if they suit me or if they just annoy me.

(Oh, and those things to the left on the top photo there are combination bottle openers/paint can openers. One will remain a paint can opener to save screwdrivers, and the other will get sharpened at the blade to use to clean the bottom of mortices, as a suggestion from Paul Sellars).

And from chisels for fine paring work to chisels for nailing pigs to walls…

Okay, so here I think I bought a bit more than I could chew. There were fifty-seven hand-cut mortices in the cot and while the ones for the slats were well suited to the firmer chisels I had, I got to thinking a proper morticing chisel would come in handy for anything much larger than a quarter inch or so. And then a few came up in a set on ebay for about twenty euro in total, split between two lots, so I grabbed them. And they’re terrifying. The scale doesn’t come across in the photos, these things are basically sharpened chunks of rebar. I can’t wrap my hand around the three larger ones fully. And the three-eights one has an overly loose (falling off really) handle with some woodworm attack and a split so I need to replace it. But these I think will be living in a box rather than on the wall. Especially the half-inch one. The thing weighs more than my hammer…

And finally got something to help sharpen my #071 router’s iron…

And something to help sharpen my western pattern saws…

And you can never have enough clamps of course…

Every schoolkid in Ireland probably remembers these, I know that’s where I first saw them. But the idea here isn’t to use this as a ruler, but as a sector. I’ll sand the markings off it and clean it up a bit, then remark it as a sector, following Christopher Schwarz’s suggestion. When I was marking out the dovetails for the cot, it took an age to get the sizes laid out and it was mainly done through trial and error with dividers; but a sector (which is in effect an analog computer, a bit like an old precursor to slide rules) would let me divide out the board correctly in a few seconds. Allegedly. We’ll see…

(And if it works, I might spend more than two euro including postage for a crappy old ruler and make one that’s less floppy)

You’ve seen this already, but since we’re mentioning dovetails, and since some new blades arrived today as well…

And this one’s a bit out of left field, and more to do with making the cheese press than the cot, specifically repairing it after Calum managed to break it. The Record 53A is a spectacularly good wood vice, but you can’t use it for metalwork really, it’s not designed for it. The Record Imp is a kindof  light duty tabletop vice, designed for use for small jobs. Think “Auxilary vice”, something you’d need before you start getting to the larger Record 4 and T5 mechanics and engineers vices, which are enormous behemoths of things. Maybe in a larger shed, but in my one, this is a better fit, especially as it costed €35 instead of €150 😀

Speaking of fit, it doesn’t – the bench top is too thick. So I need to make a board with a batten that it’ll fit and which I can clamp in the 53A or secure with holdfasts, and I can clamp the Imp to that (and bolt it to it as well probably).

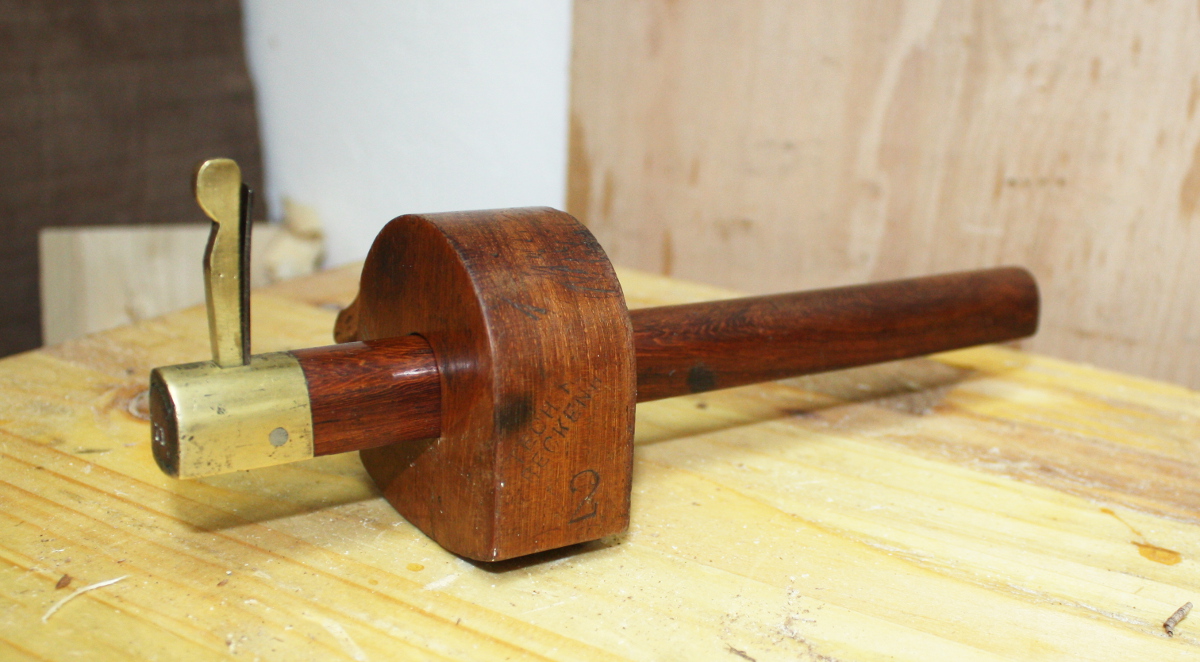

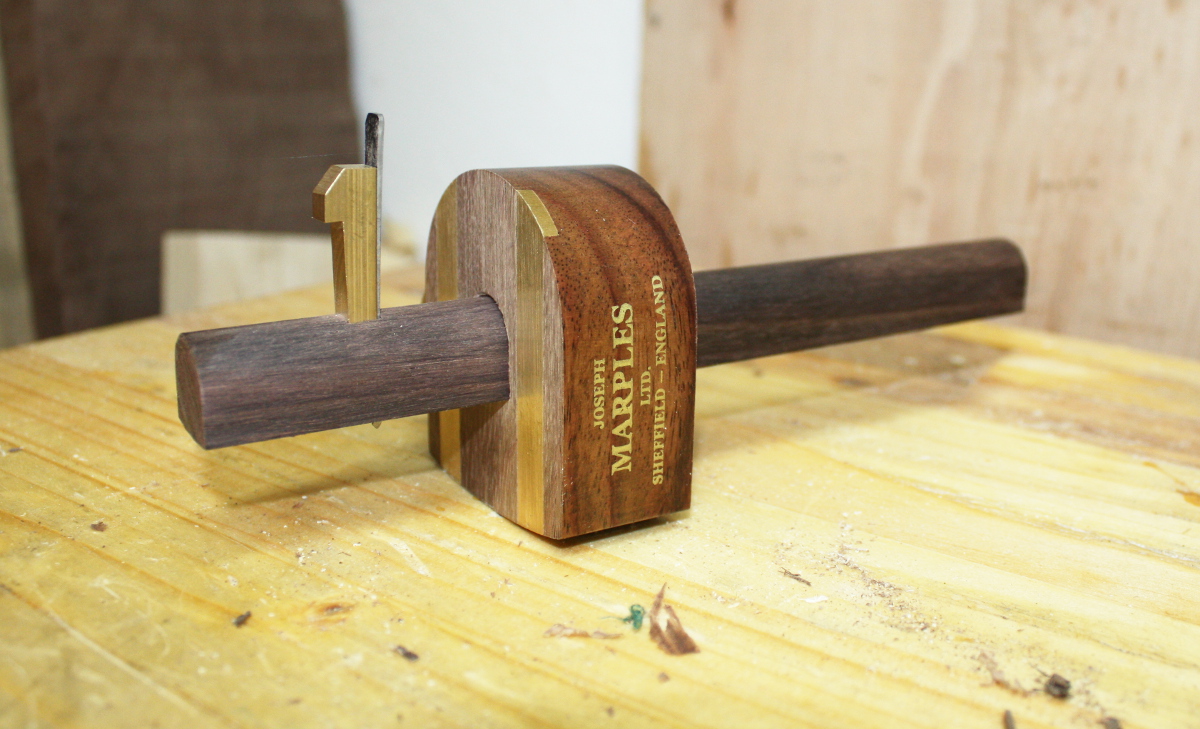

And lastly, two new slitting gauges because I’m sick of having no option but to keep a piece of scrap about to note the settings for my wheel gauge; as a solution it works but you’re always going to get some small errors creeping in. The real solution is to have more gauges, and they’re not hugely expensive (usually you’ll get this kind for somewhere in the €25-35 range and you’ll find them for less if you’re willing to wait – both of these cost me €20). The top one is a new Marples model and it feels just lovely in the hand. I’m wondering if the rosewood will shrink away from the brass in the face; we’ll see. The lower one is an I.Sorby model from somewhere before the 1960s which looks better in the hand than it does in the photos, it’s really in lovely condition. Both are slitting gauges (or cutting gauges? Unless you only think of the lovely japanese versions of these as slitting gauges) with knife blades rather than pins because I’ve used pin style marking gauges and I just don’t like them that much, I much prefer the edges on the wheel gauges. Maybe if I refiled the pin’s heads to a more knife-like profile… but then, I’d have made a slitting gauge then, wouldn’t I? This way I just get what I want from the start 😀

Next up, I have to start getting these things stored. There are a few things to do in the shed over the next while, getting tools up on the wall and doing general shed maintenance stuff and the like, and then I have an idea for the next building project, but I’m waiting on some bits that I’ve ordered (without a lathe, there are some things I can’t make myself).

Wristrest

So I’m still cleaning down the shed from the cot (finally got all the shavings under control…) but yesterday an officemate (hi Gary!) was looking at MassDrop (think “what to get for the rich geek who has everything” with a pricetag to match) and specifically at a wrist rest. For those who don’t type all day, it’s something to rest the wrist on while typing:

If you type all day every day like a lot of software engineers do, this is a pretty necessary thing or you wind up with carpal tunnel syndrome. I’ve had that, it’s not fun (it’s why I’ve used kinesis ergonomic keyboards for twenty years).

So the specific one Gary was looking at was wooden, and nice enough if a bit simple:

I mean, it’s not some gel-filled cushion, it’s not articulated, it’s just a shaped plank of wood. Walnut maybe? Fourteen inches wide (the width of a MacBook Pro) and about three inches deep.

They’re charging $95 for it (or they were, it’s not for sale any longer). I nearly choked on my coffee. I told him that was insane, that it was a lump of wood and not worth it and that I could knock that up in my shed in twenty minutes from an offcut. So he said “prove it”.

That’s how I keep getting myself into these things. You’d think I’d have learned by now.

So I go home, I find a piece of walnut offcut (in this case it was a length intended to be part of the cot frame but a bad rip cut and a waney edge made it unusable for that), I cut out a 14″x3″ piece from it (I don’t even take the time to lay it out) and skim plane it to clean off the rough-cut furriness. Then I plane one face and edge to square, and shoot the ends square from that. I don’t bother with the other edge or face because they’re going to get shaped anyway. And I cut the corners curved on the front using my new toy that just arrived from Dictum today:

Well, I have a project or ten in mind that will involve dovetails and I want to try sawing out the waste on the pinboard instead of chopping it out because that took a bit longer than I thought it would on the cot drawer. I need a better place for it to live though…

I also need to finish tidying up, and one of the next shed projects is tool storage. But for now…

And from there, I get out the spokeshave and round over edges and I use the jack plane to cut a quick chamfer on the front edge and then go over everything with the spokeshave again to get it all nice and smooth, and I hit the ends with some sandpaper for a few seconds to get the last little bits around that knot on the left front side.

Total time from start to here was about 25 minutes or so (I was faffing about a bit with the new fretsaw). With machines, that’s two tablesaw cuts, two mitre saw cuts and a run-around on a router table, so maybe three minutes?

It needed a little finish and I had the dregs at the bottom of the shellac jar to hand so…

One coat on by brush, then in for a cup of tea and a bit of Richard Maguire’s latest sharpening video while it dried. Then out to the shed again, some steel wool to knock back the first coat of shellac and rag on a second. Back to the house for more tea and Maguire, and half an hour later I take the offcut piece of felt I had from lining the cot drawer and cut a small piece out of that and spread it and the underside of the rest with contact cement from the end of a tube left over from putting leather on the bench vice jaws.

Let that get tacky for ten minutes, then press the two together and trim the excess. And then a final coat of briwax on top for the shiny.

By this point I realise I’m foostering so I draw a line under it and wander back in from the shed. Total work time is about 30-35 minutes (with something like 90 minutes of waiting on finishes while watching videos and drinking tea in there too). And the test fit worked:

And it doesn’t just work on my laptop, it works in production*:

So $95 versus €2. Hell of an exchange rate, even when you count the three minutes it’d take to make with machines, labour, marketing and so on.



*That’s a joke for the other IT people btw.
