One of those days

Feels like lots of work for not much progress really.

Started the day driving to woodies and buying a plank of pine to put a shelf in the new garden box to get the lawn seeds and chemicals and stuff off the floor so it’d be less cluttered, and buying a padlock so the newly organised chemicals were out of junior’s reach.

Then finished off the hammer holder.

img_9778a

And then immediately remembered the other two hammers sitting in a box in the kitchen waiting to come out to the shed. Feck’s sakes…

Then took the frame and the door off the shed, and fitted better hinges than the ones that were on it, learning as I went just how much expense was spared when building this shed. Honestly, I’m rather surprised it’s still standing, it was so shoddily assembled. But I got it re-hung on the new hinges after a lot of faffing about to get it to swing cleanly, and then I moved on to changing the hasp from a simple bolt to a van lock type of thing.

Which wouldn’t fit. At all. I’d have to hack a four-inch section out of the door frame altogether and even then I’d have to take down the interior wall to fix it properly. By the time I found that out though, I had three new 8mm holes drilled in the door. Ugh.

So I reassembled the old crappy hasp, putting screws in all of the screwholes this time just to be wild and carefree about it, and I’ll have to go order another one off ebay tonight. There have been some burglaries around here over the last year or so, no point tempting fate.

So after having wasted half a day on that, we then had the trick-or-treaters round for a few hours, and took junior to see his first fireworks, which was fun.

By now I’m starting to realise I’ve spent a four-day weekend working on the shed and the crib hasn’t seen much progress. So feck, it’s dark and I can’t get the jig built. I can at least resaw a slat. My new Tyzack 1900s era saw arrived in the post on friday, with a set of teeth on it like it hadn’t been sharpened since it was made. But here’s my new Bahco saw file, one of the best saw files available today according to everyone from Paul Sellers to all the youtubers who copy his stuff ad nauseum (with their own added errors just for fun).

img_9783a

If this is the best saw file available today, I think we’d better get used to disposable hardpoint saws.

Despite the thing snapping within the handle not just once, but twice, I eventually managed to get some sort of sharpened teeth on the saw (but honestly, I’m going to have to file them all off and recut them from scratch sooner or later, they were in brutal shape), and I resawed one slat with the new saw.

Or rather, I did half of the resawing with the new saw. It does cut, and it’s more steerable than the ryoba if it drifts, but it’s horribly slow by comparison to the ryoba so in the end I just gave up and used the ryoba on it. I don’t know if it’s the teeth on the tyzack or the kerf or what, but it was dog slow getting through that ash. And it splintered the corners on the exit quite a bit, it was not a clean cut. I should be able to use both slats but only because I already finished one face; there’s only enough margin to clean up one face from the cut, it was that bad.

And that’s it. Four days off, one lath resawn to give two unfinished slats. This was not the kind of day that leaves you feeling like you’re making progress…

Tidying up and small jobs

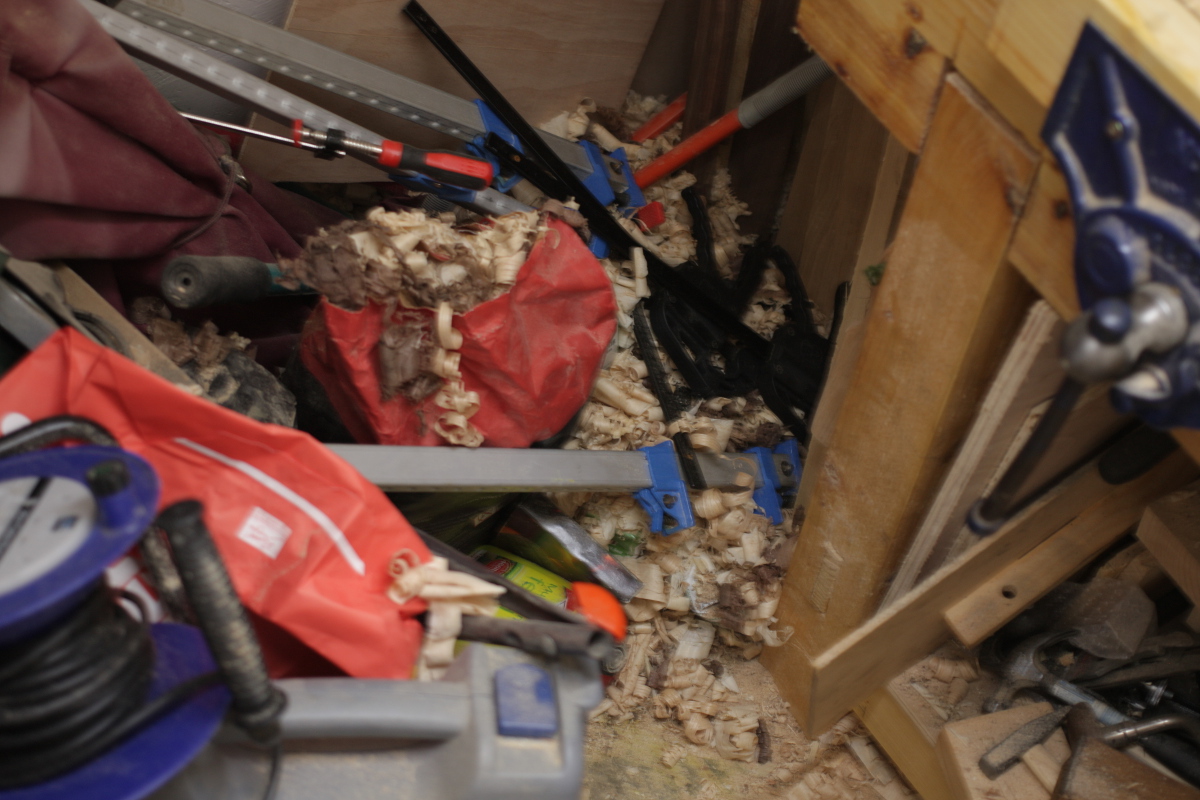

Didn’t get the jig built. But did get the lawnmower and a lot of other annoying floorspace eaters cleared out to the garden storage box, so I’ve now gone from this:

img_9759a

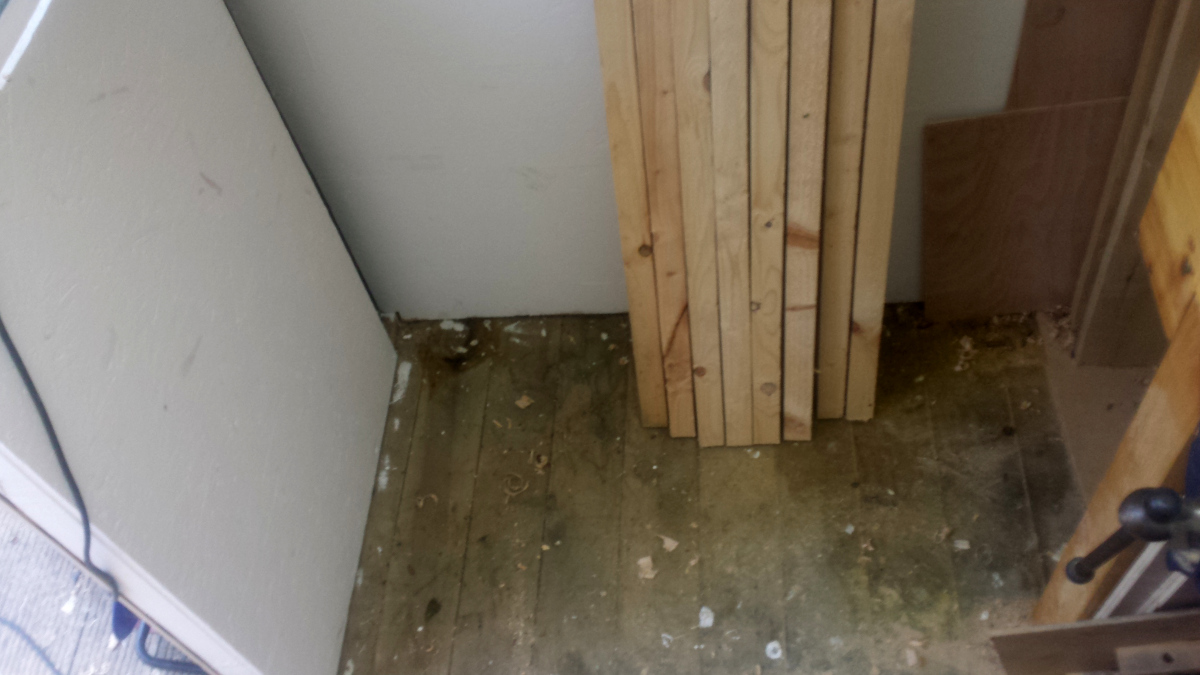

being under my feet to this:

2016-10-30-12-42-54a

It’s a remarkable change 😀

Mind you, while getting that done other stuff had to be moved about so for a while, this was my bench…

2016-10-30-12-43-44a

So not ideal. I finished breaking down almost all of the boards from friday (there’s still one 6’x6″ walnut board I haven’t cut yet) and stacking them and generally doing small bits of tidying away (like putting some mdf on the floor under the timber because that floor looks manky):

2016-10-30-21-17-19a

So a little crowded again, but the dremel, the bench grinder and air compressor are all going up on french cleats on the wall or elsewhere in the shed, along with those clamps; and as to the wood, well, that’s three or four projects on the go so it’s not just sitting around taking up space, it’s raw materials. I can live with that.

Still way too small a shed though.

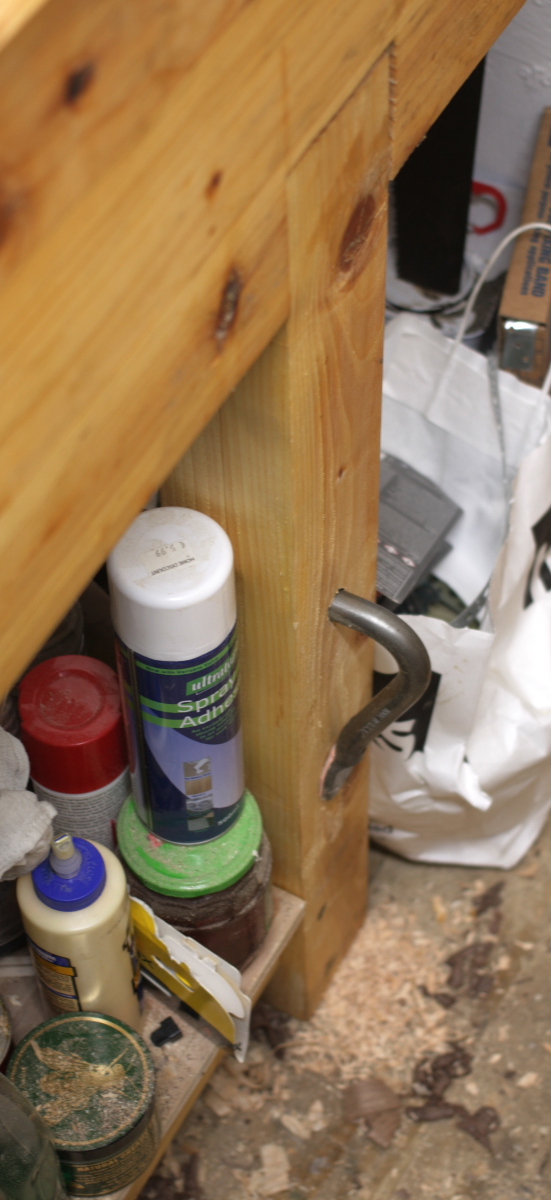

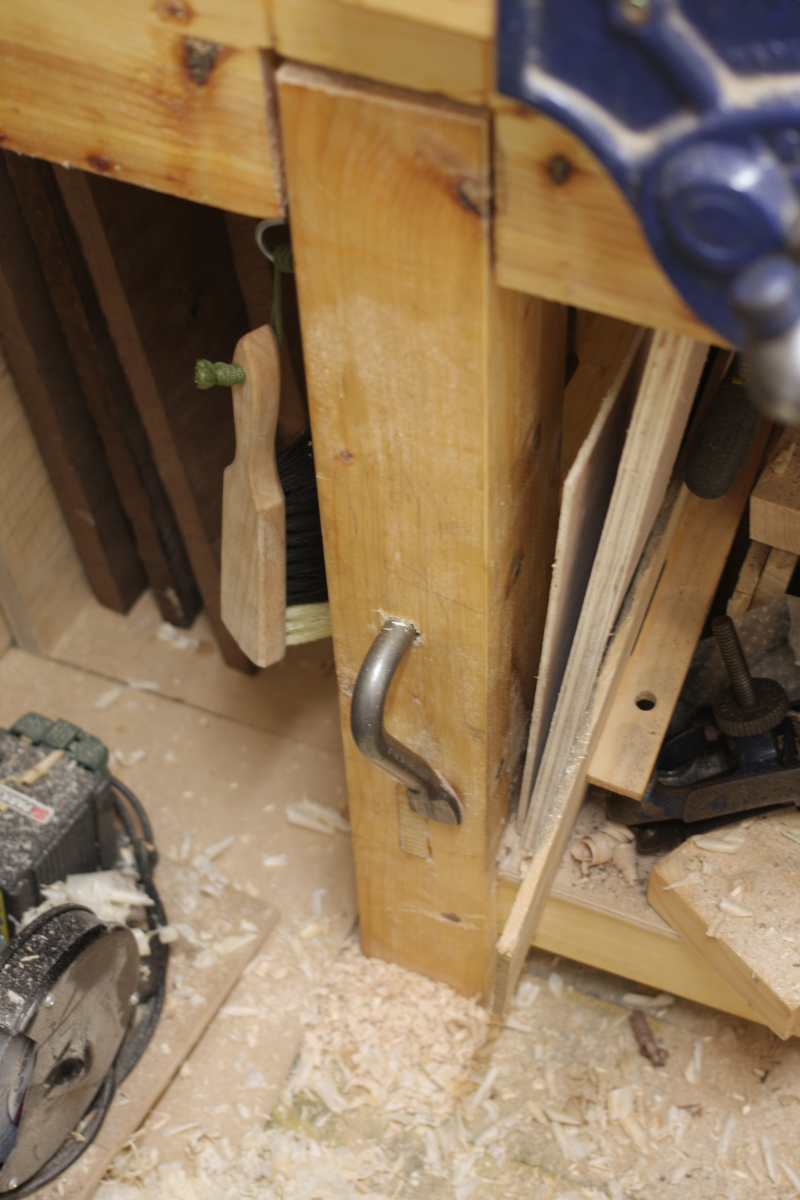

And then I started trying to get some more things off the bench to free up more space. So the holdfasts finally got storage holes in the legs…

img_9769a img_9770a

(I couldn’t drill a second in the right leg because there’s a tumbledrier in the way. Don’t ask).

And the scrapers finally get a small holder to get them out of the way and kept together.

img_9767a

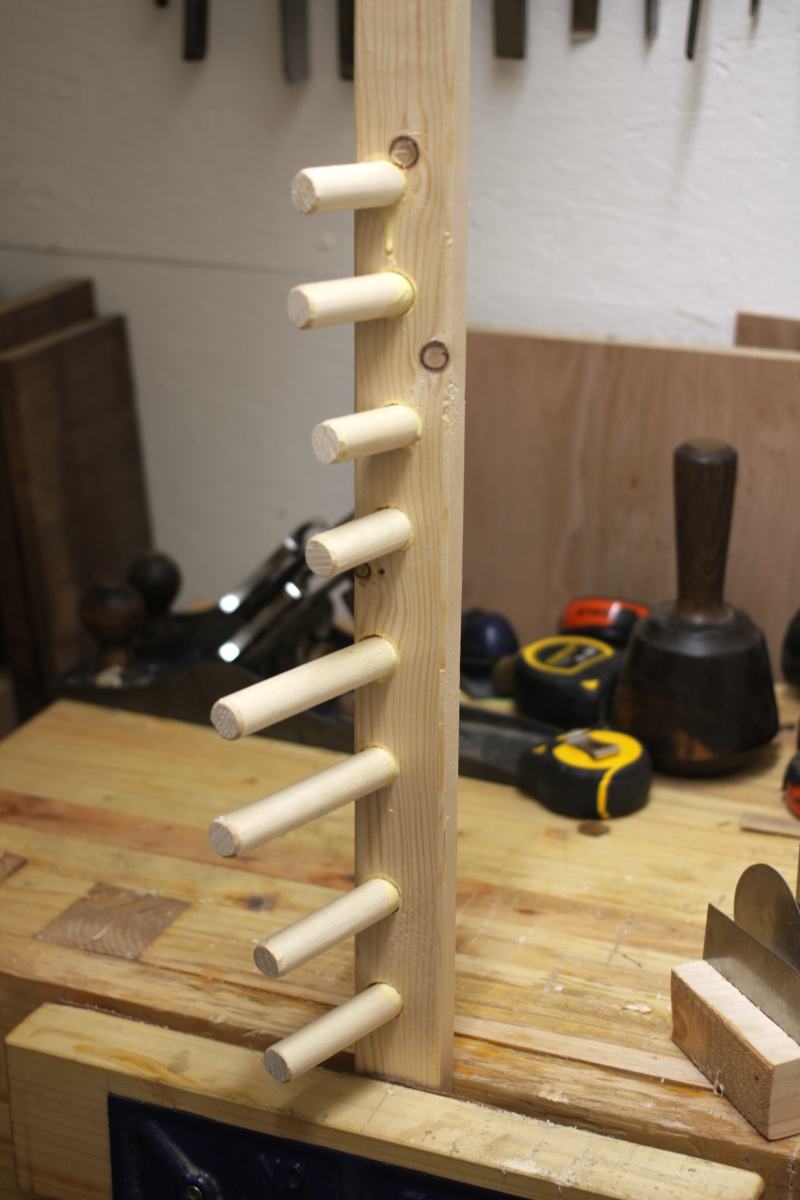

And last small job was to get the hammers off the bench and onto the wall. So a small lath of 2×1 and some holes drilled at a 15° angle and some 18mm dowel and glue gives this work in progress:

img_9775a

I’ll let that cure overnight, then drill some pilot holes down from the top of the lath through the dowel centers, and drop a screw down the middle to add some strength, then chisel and plane the back flat and screw it to the wall. Then I’ll hang the hammers on it and hold my breath…

Shop till you drop

It’s been one of those consumer weekends so far. Friday was the trip to the timber yard (and would have been another trip to go buy a plastic drum for dust collection, but they weren’t open); and today was a trip to B&Q to buy one of these:

0010795_store-it-out-arc

Yeah, I know, it’s plastic, but it’s cheaper than you could build one for. Tomorrow the lawnmower and garden tools and a lot of this muck are going in there:

img_9759a

After that, I might be able to actually stand in front of the vice for rip cuts…

And then there was the testing of the mattress for the cot, for which we roped in a volunteer…

2016-10-14-19-16-16a

It was deemed to have passed inspection.

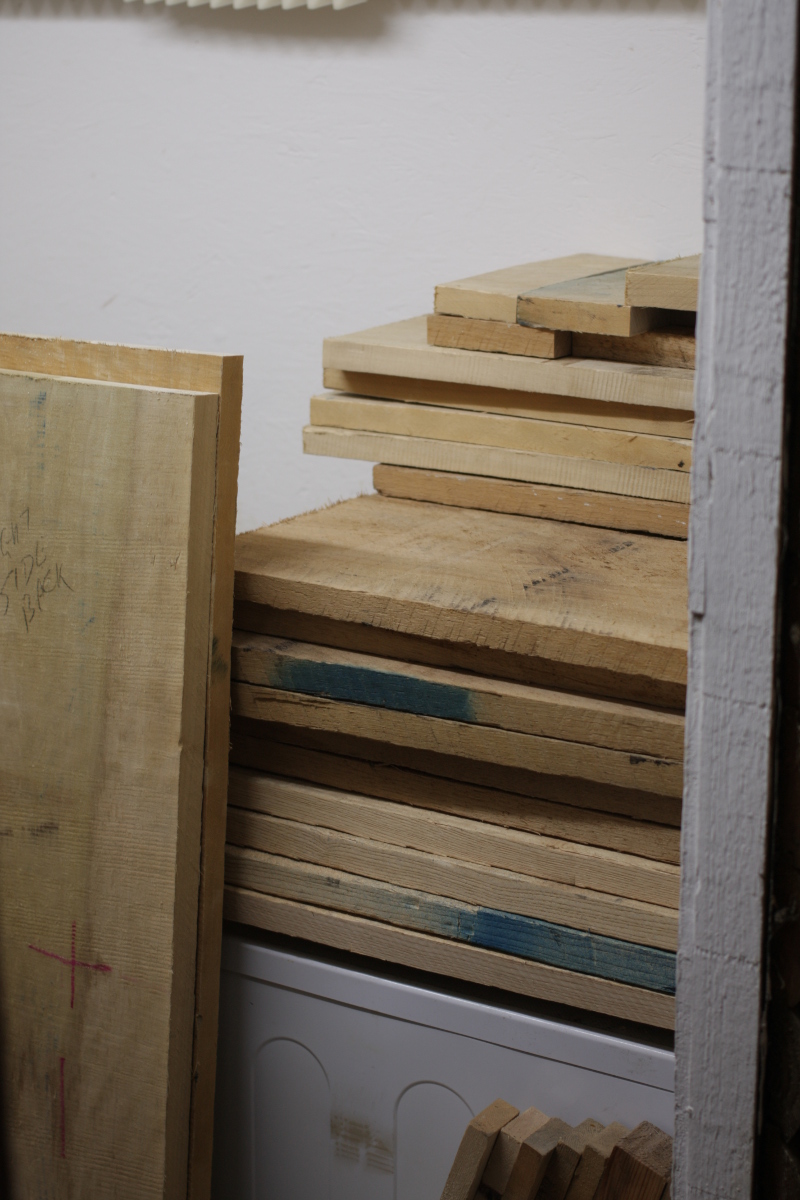

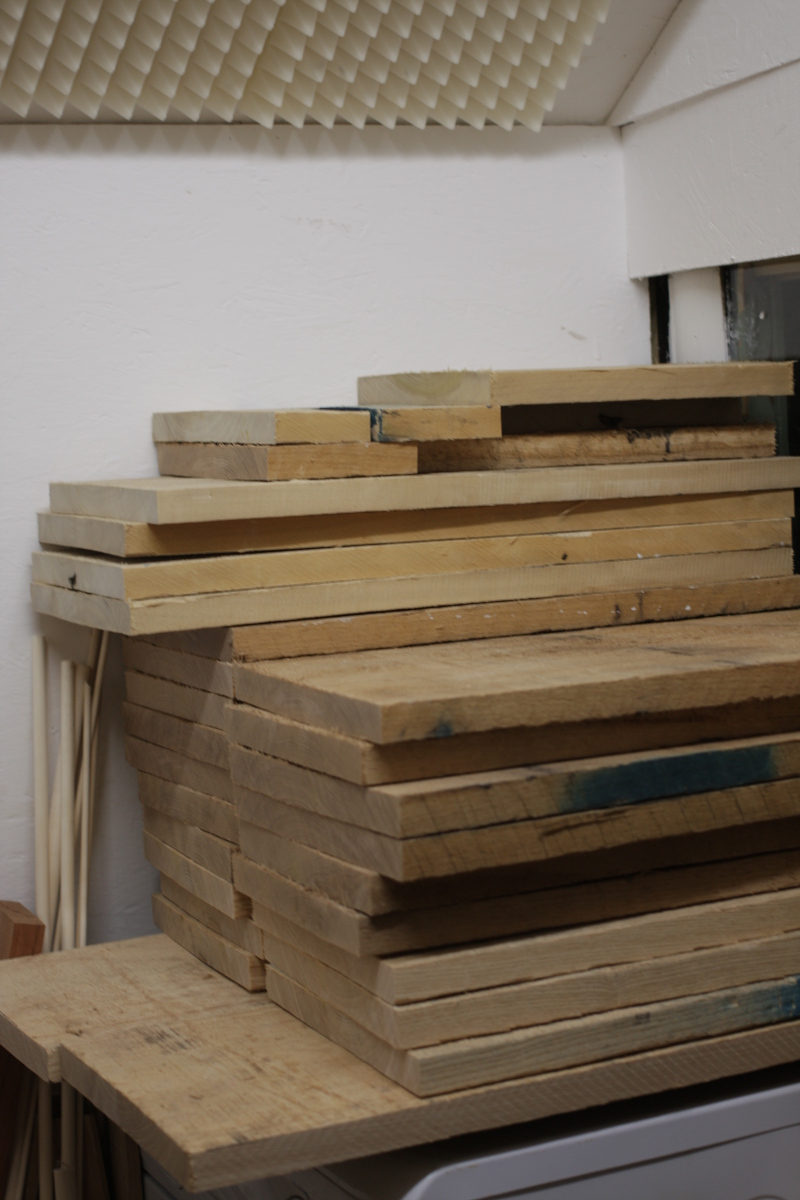

And lastly, I solved yesterday’s storage problem with the vigorous application of a circular saw (yeah, yeah, power tools, I’m unclean), and now I have a stack of rough-cut parts for two or three projects.

img_9740a img_9745a

There are still a few 5′ and 6′ boards to stack, but I can manage those, just about.

And with any luck, I might get back to project work tomorrow sometime, and get the steaming jig rebuilt, a drying jig built, and if I’m fast, get one of the walnut frame pieces steamed and bent.

Back to the yard…

So I have a few other projects I wanted to try on this year, and I needed the material for them and I figured it’d be no harm to have some extra on hand in case I make a total dog’s breakfast of the cot’s steambending, so it was back to Quinns today…

2016-10-28-12-28-52a 2016-10-28-10-42-48a 2016-10-28-10-42-32a

So much fun stuff in this place 😀 And apparently they’d seen the photos from the last day and liked them, so Hi John and Paul if you’re reading.

Paul did his usual grand job of making everything very easy on me, and I wandered away with almost too much wood for the car this time. Oak, ash, poplar and walnut, almost eight cubic feet of the stuff in total (which is a lot more than it sounds when it’s in the form of 16′ long 1″ thick boards).

Transport was a bit of fun 😀 I am slowly learning the limits of what the car can hold…

2016-10-28-12-28-06a

And storage is also posing challenges. I think I’m going to have to break a lot of this stuff down today for the rough cuts (handily, I know what it’s all for so I have cutlists).

img_9734a

Got talking to John while I was there, and apparently they’re putting in for FSC recognition at the moment (basically, think fair trade but for timber) and we were talking away for a bit about the trade which was educational. And John also mentioned that they’d had some sapele come back in which the customer had had a problem with, but which they were now treating as offcuts and selling at €10 per cubic foot.

2016-10-28-11-24-28a 2016-10-28-11-24-11a

It’s all 2″ thick stock or more though so I didn’t take his hand off at the wrist. If I had a bandsaw, that would all have landed in my car boot though. As it was, I took the only bit of 1″ stock that was left, and it has some really nice grain in it.

img_9738a

I can see why people like this stuff. I’ve not had a chance to play with some before, so this should be interesting…

More resawing prep…

Even the end grain is pretty

Spent this evening’s hour in the shed getting the next four laths ready for the resawing by ripping them out of the prepped plank from yesterday.

img_9704a

It’s a tad finicky making a long rip in a board with a ryoba saw, at least on the initial setup. I mean, once the saw is established in the groove and the board is upright, it can tend to track like a laser down the board (unless it hits a knot at a glancing angle); but if that initial inch or so is off-line, then the saw wants to keep going in that initial incorrect direction and it can be a pain to correct because the teeth at the other side of the ryoba will dig in if you turn the blade even a little and the lack of any set means the kerf is nice and thin but it also means you have no room to turn the blade. So that initial setup gets very finicky…

img_9707a

img_9710a

img_9712a

Richard Maguire’s got a slightly different way of doing this, but if your shed is all of eight feet tall at the absolute highest point (and five feet at the lowest), his approach is not really all that possible…

Maybe if I ever get round to building a sawbench I could manage this, but that won’t be for a short while yet (I have the material and an idea for a design but I need to rework that if I’m going to allow for standing on the thing while ripping)

Mind you, when it tracks right, it leaves a lovely clean cut that needs at most three or four strokes with a plane to clean up. And now I have four clean laths ready to be resawn down to slats, which will give me a total of 27 to use in the crib (I’ll probably drop one for symmetry, which will leave me with six unused slats to test finishes on and practice joinery with, or to reuse in other small projects around the place).

Even the end grain is pretty

img_9721a

Yeah, I know, an edge or two needs squaring up. I’ll do that before the marking up for the resawing. But you have to admit, that ash has some lovely grain to it.

Cleaning up

Tonight was mostly cleaning down from the weekend. I broke down the jig, saving the screws and while the sharp hammer blow took care of the glued on blocks, it did it by removing the block and the top millimeter of the MDF. Oh well. Have to rebuild it anyway. Need taller blocks and I’ll probably cut a bit of the MDF base off to make a drying form as well (the idea is you bend it on the bending form, let it on that, then take it off, remove the bag and the strap and all that, and then clamp it to the drying form and leave it there for a week to dry and set fully).

Then it was time to start in on the next eight slats for the cot. I got the remaining half of the 72″ ash board I got the last eight from and cut 31″ off that (the ends were a bit ragged so I left room to trim it back to 30″), and brushed off the muck.

img_9682a

img_9685a

Kindof mucky still really, but that’s what you get if you sit about in a timber yard for ages and then a shed. But fifteen minutes with a jack plane on the faces, edges and on the ends with a shooting board later…

img_9695a

img_9702a

It’s just lovely. It feels like slightly textured glass, there’s lovely grain in it, it’s just downright pretty. It cleans up well 🙂 It was almost painful to mark it up, but it needs to be broken down so I set the gauge to 46mm (it’s 189mm wide) and marked off the first lath. I’ll rip that out tomorrow, then plane a fresh clean edge and mark the next and so on.  Ash is pretty. I need to buy more of it 🙂

FOR SCIENCE!

There was some experimentation this weekend, some of which didn’t work and the rest of which were… learning opportunities. I got the last slat planed to thickness, but lost one along the way because I couldn’t get it to thickness, there was a split in it from poor resawing that was diving down below the minimum line and it wasn’t recoverable. So next week I’ll take another 30″ off the ash board I have, plane it flat, hack it into 2″ wide laths, and resaw them down and wow does this ever teach you why we invented bandsaws.

Meanwhile, I had two experiments to run. One was to try to avoid drowning in the growing mound of shavings I’m generating…

img_9609a

Honestly, it’s getting silly now. I’ve lost two clamps to it. Seriously, somewhere under there is a sash clamp, a lidl F-clamp, four boxes of lawn seed and a container of round-up. And normally you’d just use a broom, but the space is so small and restricted that a broom would honestly be more hassle than help. So I got an aldi wet-and-dry shop vac and tried that, but while it could grab the dust and some shavings, the shavings clogged it up pretty fast. Well, there’s a solution to that – it’s a thing called a cyclone seperator. Think of a conical funnel with a lid on it. The vacuum connects to the lid, and you connect another hose to the side of the funnel angled to cause the incoming stream of stuff to spin, whereupon is slows down and drops to the bottom of the funnel and into a barrel mounted there.

img_9629a

And there it is…

…but it doesn’t work. There’s very little suction, because it leaks air everywhere. Normally the barrel underneath would be air-tight (they’re normally used to store liquids after all), with a seal in place around the lid. Here, it’s a bin and the lid is a chunk of mdf clipped in place by the handles. I suppose it was asking a lot of physics 😀 I’ll have to find a proper barrel, pay more attention to seals, and try again. The bin will go to waste, as in, I’ll use it as a bin for garden waste, but I foresee a trip to somewhere that sells barrels soon. Which, oddly enough, is a very short list it seems. I’m a bit hesitant to order one off amazon because who the hell posts a barrel? I’d never be able to look the postman in the eye again. Not to mention the point that if the Firearms Unit hears I’m getting barrels posted to me, they might take it up the wrong way…

The other experiment, which went slightly better, was to test steambending walnut. The idea is simple – wood is stiff because of a (fairly complex) chemical called lignin. It melts around 150C (well, there are several melting temperatures because your average tree will have lots of slightly different lignins – apparently it’s a challange for people studying the stuff to seperate them out, there are so many), but it will soften around 100C which is a nice convenient temperature as you just have to generate steam and that’s fairly easy.

So the theory is, take the wood, expose it to steam for a time (the rule of thumb is one hour per inch of thickness), then clamp it into a jig and bend it to the desired curve. This is normally done with a sealed box of some kind (either made from wood or PVC pipe or whatever) and then you pull the wood from the box with big thick gloves and as quickly as you can, clamp it into the jig and bend it before it cools. You have to bend it beyond the curvature you want, as it will spring back and how much overbending is needed is something you need to know by experience. Lots and lots of videos up on youtube show how to do this, but to be honest, they all looked like high-waste kinds of learning processes — especially because I only have kiln-dried walnut and this process really works best on something that’s never seen the inside of a kiln — and I didn’t feel like trying them at all as a result. And then I found this:

BTW, if you’ve not seen this guy’s channel, go there now, it’s fascinating stuff.

But anyway, his genius idea is to encase the wood in a plastic tube – specifically, the kind of continuous poly tube that you’d make smaller bags out of using a heat sealer – and pump the steam into that tube. That lets him put the wood in the jig, steam it for an hour, then bend it while still steaming it and hold it in the bent shape in the jig while still steaming it and then control the cooling-off process. Apart from the benefit of being able to work on long timbers for boat hulls, which is his thing, he gets lots of other bonuses, like being able to take his time doing the actual bending, controlling the temperature seperately from the bending process, and being able to keep the lignin softened even after the bend is done, and letting the stresses in the bent wood settle out before letting the lignin harden. This leads to far less spring-back to cope with.

I took one look at this and thought that’ll do. So I get a wallpaper stripper, some poly tube (it’s very cheap on ebay) and some metal plumber’s steel strap and prep to get bending. The strap is needed to go around wood on the outside of the curve – the reason the wood is bending at all is that with the lignin softened, you can compress and collapse the inside of the curve. You can’t stretch wood y’see, it’ll snap and splinter if you try, so the strap keeps the outside from stretching and the inside in compression.

This was, incidentally, one of the mistakes I made – I forgot the strap until the wood had been steaming for a half-hour and had to make up and apply the strap while the wood was around 100C. That does not lead to fine tolerances and unrushed work.

The first step though was to build the jig, so I needed a flat surface and some blocks around the curve to clamp to. I had a few sheets of MDF that I don’t really want to save for anything because honestly, MDF is awful. So I glued enough together to give me an inch-thick slab of MDF, and I started laying out where the blocks should go.

img_9622a

img_9624a

img_9626a

Then lots of drilling, a quick run to woodies because none of the screws I had were up to the job, and then screw&glue the blocks in place. That may have been a mistake, but not an unrecoverable one; I’ll need to disassemble the jig and rebuild it, but a solid belt of a hammer might fix that glue problem.

Then put the walnut offcut I’m testing with into the tube, being sure I had a half-meter off either end, and put in a spacer (in this case a paper cup) to stop the tube from collapsing on top of the steam pipe and melting because of a high concentration of moisture and heat.

img_9638a

And then it’s just a case of clamping one end of the wood into the jig, filling the wallpaper stripper with water and plugging it in. It takes 20 minutes or so to get up to 100C and then start steaming, then I wait an hour (actually a little bit more because the steamer ran out of water before I was expecting it to and it took a few minutes to refill it so the temperature dropped for ten minutes), and then I start bending.

img_9648a

The bending itself is not exactly a delicate operation. You don’t quite get out the hammers, but you put on gloves and oven mitts, grab the wood and then it’s just muscle to pull it into the bend. You grab it with clamps as you go and then it’s a case of pull it to bend it a bit, tighten the clamps to hold that, then pull some more and pretty soon you’ve got the bend in. If you’ve not heard any loud splintering noises, you’re good.

img_9651a

Now leave the steamer finish off the last of the water that’s in it, so another half hour or so of steaming, and then unplug the steamer and start letting it cool down.

img_9661a

Now there are a few mistakes I’ve made here. For a start, I forgot the compression strap until half-way through the steaming and had to put it on outside the bag.

img_9664a

It’s also not the full width of the piece being bent, so a good bit of the wood is not supported. And then there’s the point that there’s no scrap bits of wood between the clamps and the wood being bent (and of course, as the wood is being softened, the clamps really dig in and deform the wood.

img_9673a

On the left, the supported and properly bent walnut (still quite damp); on the right, the unsupported part that split.
Still though, I’m not too unhappy. I know what to do now for the real thing. But first, I want to watch that experimental bit for a few days  to see how much it springs back and how much overbend I’ll need. I will need to rebuild the jig though – those blocks are not tall enough off the mdf to do the job and need to be redone. I’ll also want to make up a proper compression strap setup and some scrap bits to protect the walnut from the clamps.

And all that in the middle of being swallowed whole by a slow-moving avalanche of wood shavings as I resaw another 8″x30″x1″ ash board. And I want to get that all done before I go buy more wood on Friday…

0.87

img_9611a

Four more slats planed to thickness and squared off today. Counting that first experimental slat, that’s fifteen in total so far. One will need to be revisited though, it’s too wide by quite a margin. Measuring all of them, they’re all between 10.5 and 11.5 mm thick, bar one (and there’s always one) that’s just hair under that; and they’re averaging 42mm wide, with a few a hair under and a few a hair over, bar one which is 40mm wide and another which is 45mm wide. That one is getting a few more swipes with the plane to narrow it up to 42mm, and once that’s done, I’ll have a standard deviation of 0.87, which for hand tool work from a newbie is acceptable. These are all going to need finish planing, which won’t affect the thickness too much. At 11mm thick on average, they’re basically a sixteenth over the original finished thickness goal of ⅜” — but then that goal was a loose one at best anyway, chosen by picking out an offcut I had and going “that looks like the right thickness” and then using that as the template in the thicknessing jig. Five more to go, and that’ll be the slats ready for joinery.

img_9609a

The shavings are getting a bit out of hand at this stage though. But not to worry, I have a plan. I just need to find one last component (a barrel or large bucket in the 30L range or therebouts) and I can put that plan into motion. More on that later.

img_9615a

Last thing for the evening. I’ve had several sheets of 4mm MDF sitting in the house for another project (basically, the one that put me on this road, building a hideaway for Junior inspired by this), but a little while afterwards I learnt just how nasty MDF is, so the idea of Junior sitting in a box of the stuff breathing it in is now not quite so pleasant. The hideaway can get made from something else instead (plywood probably) and that means the MDF is available for pretty much anything else because I don’t want to use it in anything we’ll keep around, so it’s now disposable material. An expensive mistake, but sod it, new lungs would have been more expensive.

Brief hint for anyone looking to start off in woodworking by using MDF — don’t. You can’t cut the stuff without making dust (well, it’s not even dust, it’s technically stuff called fines, which is even worse), even if using hand tools; the dust is part wood (which does your lungs no good) and part urea-based glue (which does your lungs no good whatsoever). You have to have specially rated filters on your respirator (don’t just use any old paper dust masks or even just standard filters on a proper respirator, the fines go straight through them). It doesn’t take finish fantastically, if you get it wet at all it swells up and is ruined, and you pretty much have to seal it and paint it no matter what you build. It’s quite weak compared to other sheet materials like OSB or plywood. About the only positives to it are that it’s cheap (though in the US plywood’s cheaper, here plywood is far more expensive than MDF), and that it’s almost always almost perfectly flat. Except for certain things, it’s more trouble than it’s worth.

I’ve used one sheet as an assembly&glue-up table surface for building the bench and I did have a plan to build a knock-down assembly table and I’d surface that with MDF as well. As surfaces that aren’t load-bearing normal to the surface, MDF is actually quite good and useful. These four sheets have been glued together to form a base for a jig for the most complicated and worrying bit of the cot build. I’ve some more work to do for that jig over the next few days, and hopefully I can get a test run this weekend on a test bit of wood. More on that then…

A change is as good as a rest…

You can only thickness so many slats before you need to take a break 🙂
First off, I finally made a choice between the Nikon D70 and the Canon 450D I was comparing. It kindof came down to these photos. Taken from the same spot (though the Nikon had a different lens so it’s got different framing), the Nikon just had worse noise constantly. Look at the back of the camera over on the left or at the black lens on the camera on the bench (you’ll have to click on the image and zoom in):

dsc_0007a

Then compare that with the Canon:

img_9547a

The framing’s different because of the different lenses, yes, but that noise is pure sensor, nothing to do with the lens. And yeah, it’s a low-light environment, but I don’t see me adding four thousand lux to the shed anytime soon. So I returned the D70 and bought the 450D. Still though, even the D70 was a big step up from my last decent camera (an old Fuji Finepix which has long since died).

Some of the photos the D70 produced are just, well, pretty:

dsc_0010a

But when you zoomed in the noise spoiled it. The Canon doesn’t have that problem, even if it can’t quite match the framing as easily because it’s using a prime lens:

img_9552a

And I was mucking about with a borrowed telephoto lens just for fits and giggles today. I can confidently say it’s utterly without use in the shed, but I did get one nice photo out of it:

img_9567a

But I think something like an 18mm or less prime lens is probably what I’d want along with the 40mm I now have. And maybe later a tripod. First though, I want to get the battery grip for the Canon because it’s too small for my hands. Oh well, they’re relatively cheap for the clones at least.

Then, footering about complete, I got on with some stock prep. I wasn’t quite ready to return to the slats, so I finished up what I’ve been doing for the last two days:

img_9586a

2″ wide walnut laths for the frame, ripped from 4-5″ boards and planed with the jack. They’re an eighth over 2″, and are going to get some more trimming later, but I’m going to get them prepped like this now and try to see if I need more walnut or not for this build. There’s a lot of sapwood though…

img_9589a

Although, apart from the waney edge bits that have eaten around a fifth out of each board (but hey, those are experimental bits for testing finishes and steambending and so on), the sapwood itself isn’t that ugly looking…

img_9601a

The grain’s a bit of fun though. I think the card scrapers are going to get a workout.

And with those done, I went back to work on the slats. I now have ten slats planed to thickness and squared. If I can get the rest done by the weekend, I can get the other walnut boards planed and ripped over the weekend (and sort out the dust collection and maybe some of the electrics) and then the following friday I’m going to the timber yard for some oak and poplar (and if I get those bits done, I’ll know how much extra walnut and ash I need).
