Groovin’ right along…

Baby blanket chestWoodworkingWorkbench

The rails were all prepped and squared last night so today at lunch I hobbled out to the shed and started grooving them with the #044.

First off, checking the position of the groove and the shadow lines (if we have any) with the long rails.

Line up the reference face of the rail with the stile and nick the corner with the marking knife at the edges of the groove on the stile. Then use the marking gauge to run those lines around three of the four edges and reinforcing the lines on the edge with the groove using the cutting gauge. Then into the vice and plough the groove out with the #044.

But the inside edge is a bit rounded and ragged which could cause issues, so out with the japanese chisel (which I’m starting to enjoy using – it’s great for anything involving chopping but for paring it leaves a lot to be desired) and the narex to clean up.… Read the rest

Read More
Mark Dennehy in 2 Comments

Standing upright

Side TableToolsWoodworking
More
Workbench

Last few days have been the first really cold ones of the year. -2C to -3C in the shed. And work was… somewhat excessive in the last few days so tonight was the first time in the shed in a few days and a to-do list was waiting. So…

Ran a slightly larger drillbit through the aprons to give some flex room for the bolts, and flattened the top of the aprons (I also spent a half-hour before this with the scrub plane and #5 flattening the underneath of the tabletop and hand-cutting the panel to width to trim out the worst of the bandsaw wobble).

The stainless steel inserts arrived on Thursday in the post, thankfully. Seems everyone makes these in zinc-plated steel, but actual stainless is a bit hard to find.… Read the rest

Read More
Mark Dennehy in No Comments

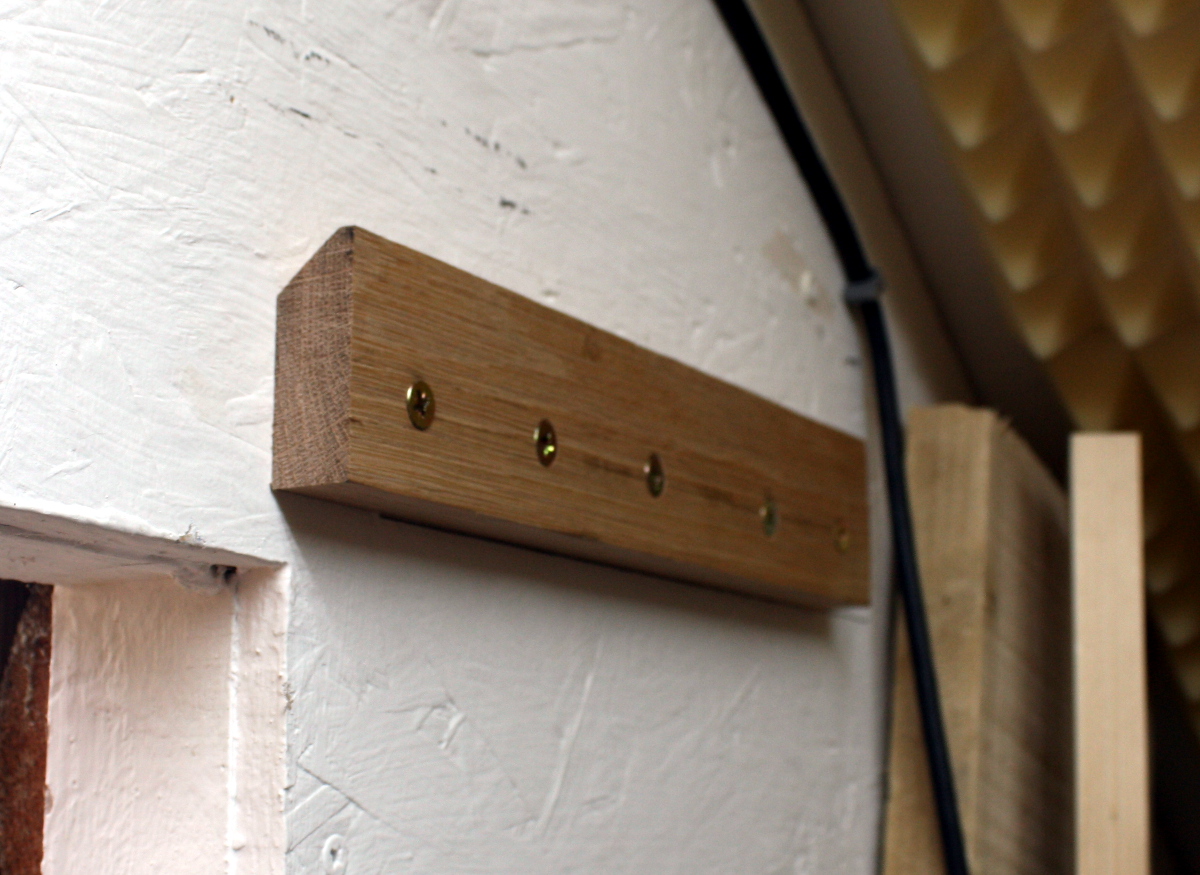

French cleats and bench grinders

ShedWoodworkingWorkbench

So I’ve said once or twelve times that I needed to do something about this stuff in the shed:

The little air compressor proved useless for shellac and stuff so it’s moved indoors to the lab for future mucking about with airfix models with junior and the like. The dremel, well, that’s handy for stuff so it still lives there, but the grinder was just a pain in the fundament. It’s on an MDF base with a small cleat on the bottom for the Black&Decker Workmate to grab onto (or the vice on the bench these days). So I finally got round to fixing that up and getting it out from underfoot.

Smaller base, cleat at the front end to act like a bench hook and a holdfast at the back keeps it nice and stable (the base tends to cup a bit, I don’t think it’ll last forever).… Read the rest

Read More
Mark Dennehy in No Comments
