Cleaned up

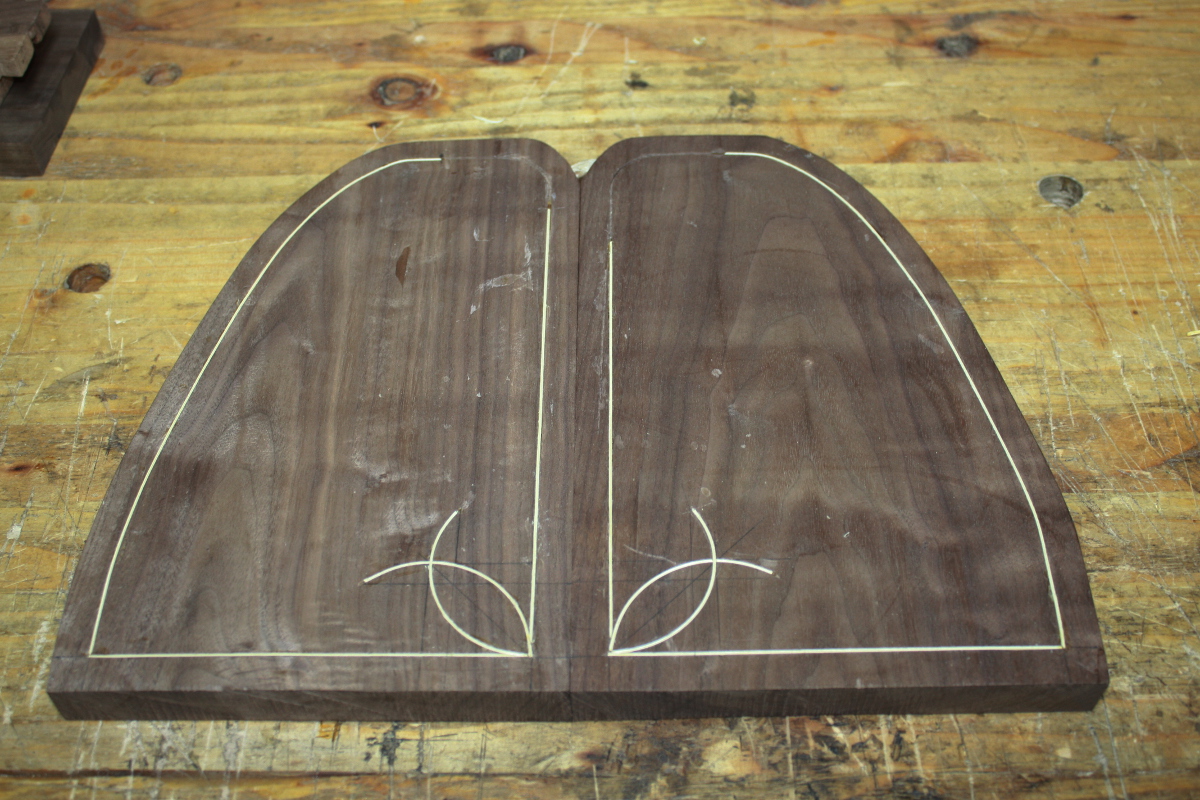

Trimmed off the excess from the weekend’s work, and it doesn’t look too terrible:



There’s some more outline left to do (for which I will need to bring the heatgun out to the shed from the electronics bench) and there are some more decorative elements I want to add, but not bad so far.

I also need to think about decoration for the rest of the piece:

I have some ideas, but they’re not settled yet…

Back to the shed

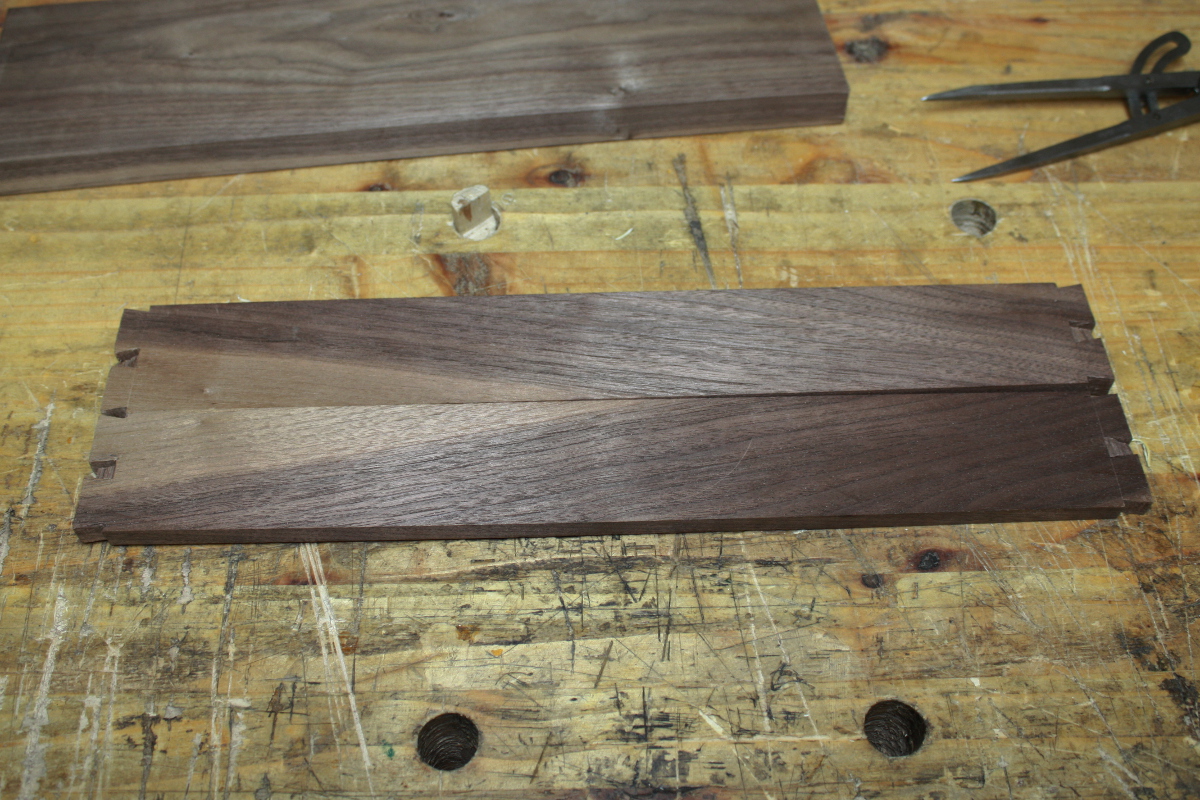

First day in a few weeks where it’s not been I-don’t-wanna-go-out-there weather and my teeth haven’t been broken, so I wandered out to the shed to continue the current stringing project and try to make some progress on it. I got the joinery for the desk shelf mostly finished yesterday evening, though I borked the dovetails and I’ll have to do something decorative to cover that up (one of these days I’ll learn you can’t do fine dovetails as an end-grain-to-edge joint) but other than that it’s not terrible. So I skimmed it up to get ready for stringing and started cutting a nice basic outline with the shed-made cutter and occasional use of the lie-neilsen radius cutter.

The card’s not an advertisement btw, it’s just that you need somewhere for the pivot point of the radius cutter and if you don’t want to dig a hole in the middle of your project, double-sided tape holding down a plastic card like that makes a good surface to anchor to. In other cases though, you can put the pivot point in a groove and so it gets hidden when you put the stringing in:

Those pivot points will just go away when I put in the bottom line’s stringing. So, time to cut some:

I still haven’t found a good supplier of thick (~1mm) veneer so this is the lamination of two 0.6mm thick sheets of horse chestnut. And the glorified pizza cutter makes short work of it with no tracking off the line following the grain, it’s neat that way. Just don’t leave your finger hang over the edge of the ruler because it’ll take that off too. Tungsten carbide blade. Next, put glue in the slot…

Handy things these, but you don’t half get a few odd looks when a box of them arrives for you at the office…

And the pivot points are hidden. I was able to coax the stringing round those corners by rubbing it a few times to heat it through friction but I really must get a bending iron off ebay.

Now let the glue set a while and then trim back with a chisel (I’ll take a smoothing plane or a scraper to the whole surface when it’s all done, but cutting off the excess now makes it a bit easier to work with).

Not a fantastic job on the endpoints, but okay for a first try I guess. Now to cut the line that cuts through that curve (funny thing, I’d have thought you’d cut all the lines first then glue in all the stringing, but no, if they overlap like this you cut through the stringing as well for a cleaner result).

And now glue in the other curve and the other straight line, covering that pivot point again…

And leave that set a bit, trim back the excess and then glue up the last long straight-ish bit:

I knocked off there, I’ll come back to it tomorrow evening for a while and clean it up, but for now that’ll do. I really want to find a way to heat the stringing for that last remaining segment and I need a plug cutter set (which is on its way) for the last decorative bit I had planned for that corner.

Not too bad so far I think. Mind you, so far this has been rather simple…

More stringing tests…

Hmmm. Well, the veneer I cut myself was a total failure, but then I could guess that as it came off the bandsaw – that thing is just not up to fine work.

I mean, maybe if you just needed a wavering line that left gaps in some places and was full width in others, but that’s kindof a specialist sort of need 😀

The doubled-up sheets of 0.6mm veneer were… okay, but a little fiddly. The result was okay though.

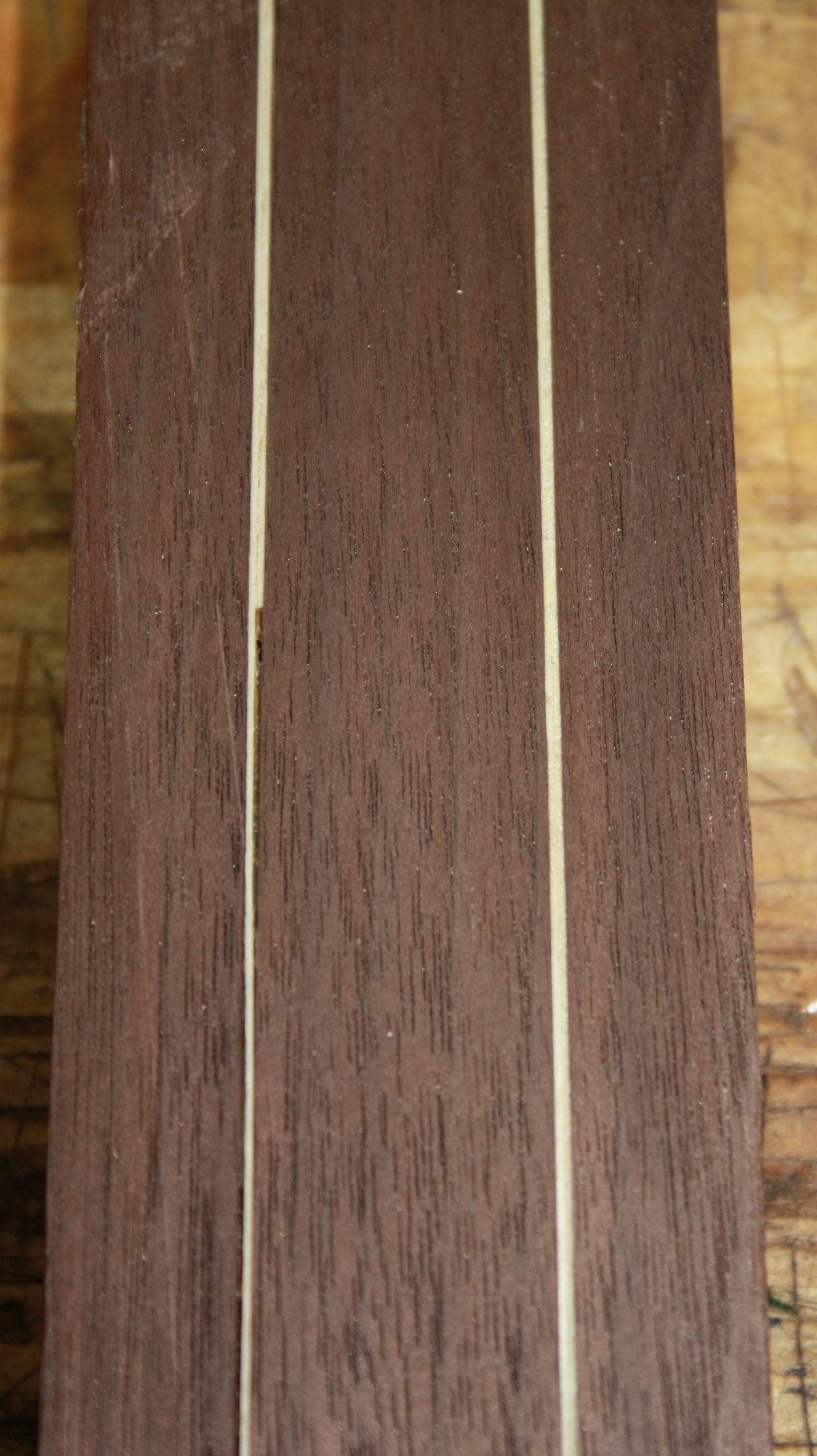

(That’s the single sheet on the left and the two-sheets-glued-together on the right)
Looks even better from a small remove:

Still though. Would rather get the thicker veneer. The search continues….

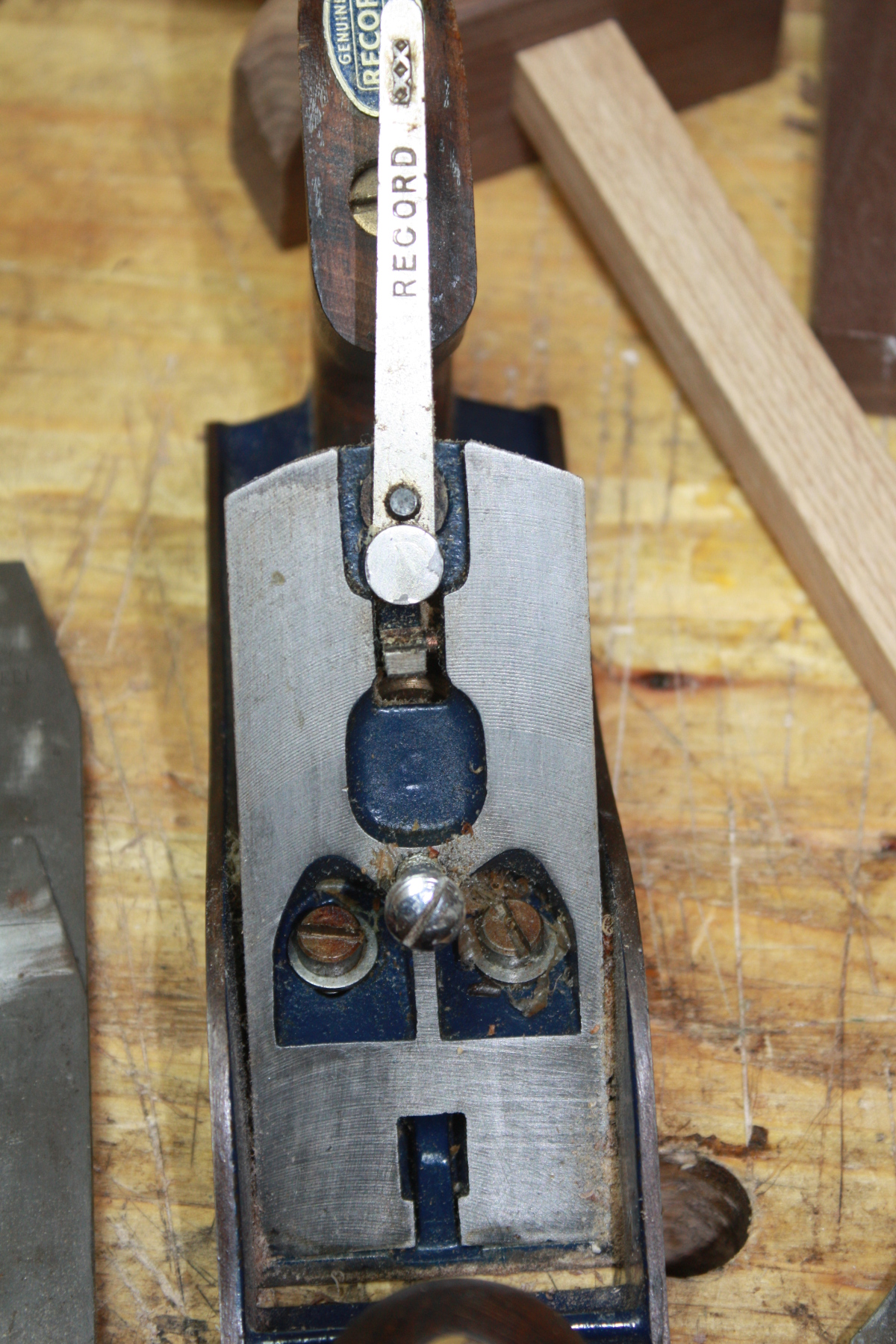

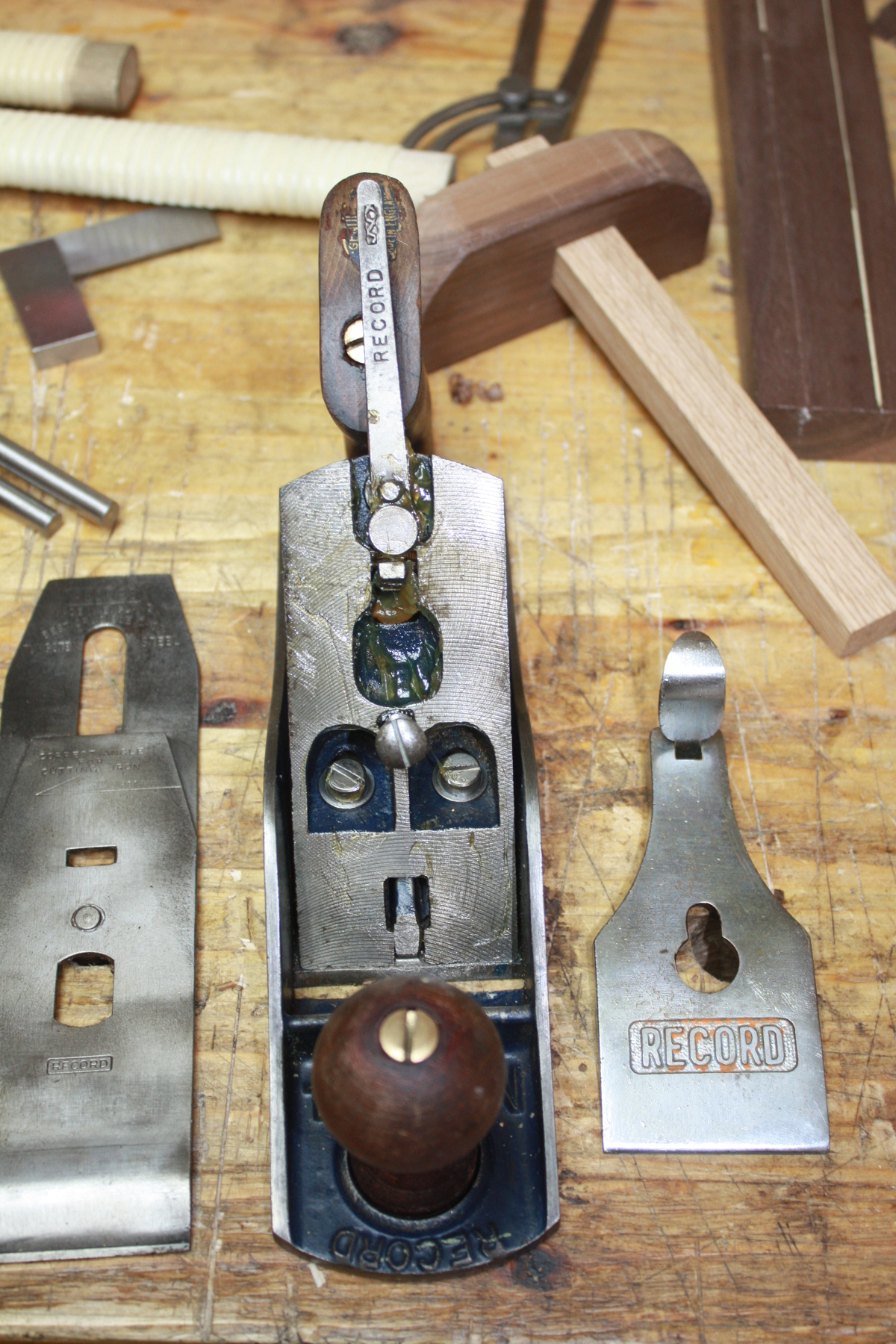

Oh, and some more photos of the record frog from the new and old #04, it seems to be an oddity apparently.

Hiding from the sunshine

Fairly ugly weather here for the last month or so, and between that and a broken tooth that developed an abscess and needed a root canal, I’ve just not been in the mood for the shed. But today was sunny for the first time in about five hundred years, and I’d bitten through the second temporary filling the dentist had fitted for the period between “drilling all the pulp out of the tooth” and “finishing off the root canal”, so I figured I’d go hide in the shed and play for a while.

Also, a new toy had arrived:

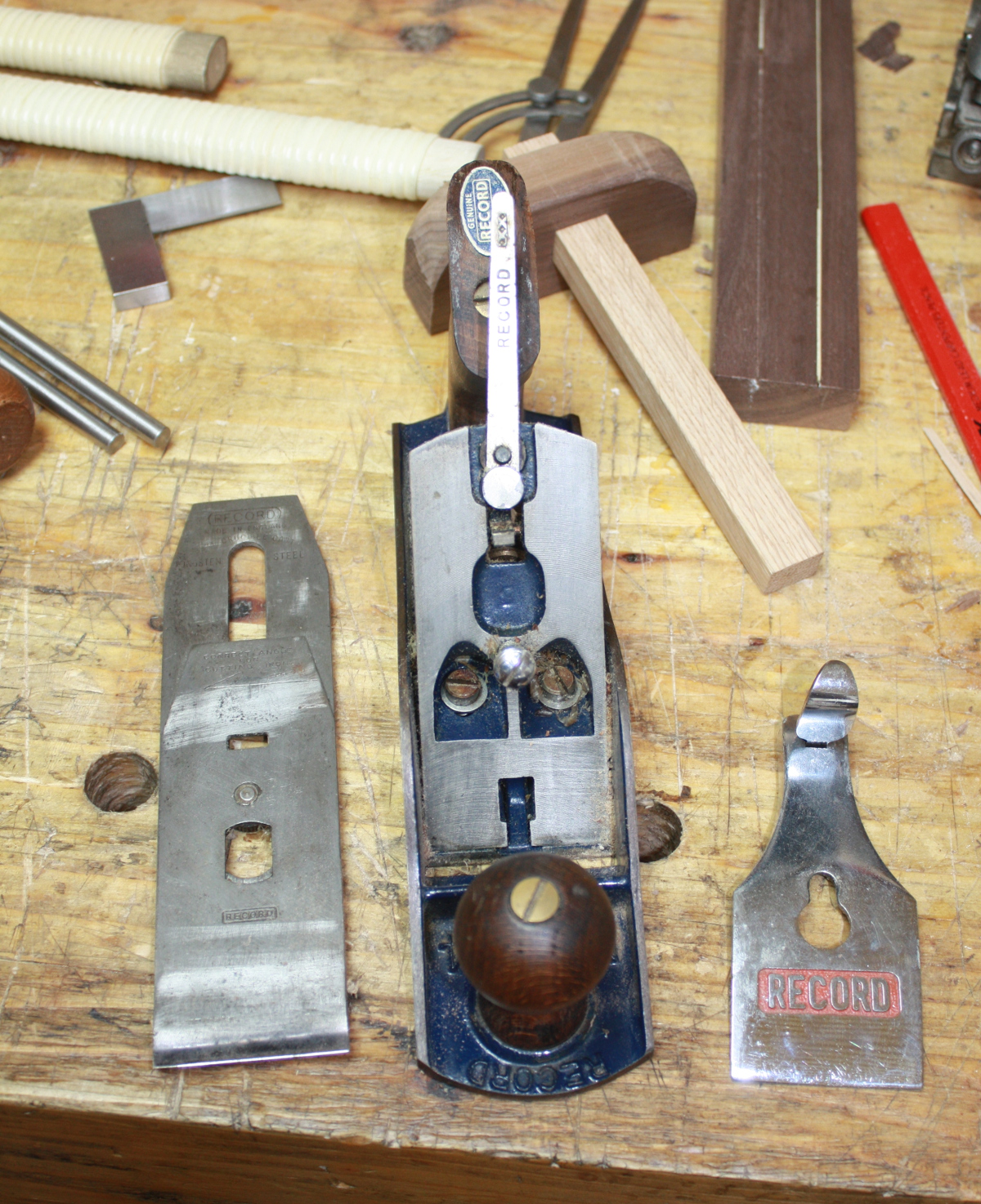

Nice early version of a Record #04, bought to be used as a scrub plane. I already have Sid:

Sid was made from a cheap-as-chips €12 #4 and for rough work it was grand, but the casting isn’t great and it digs into my hands until they bleed and the front tote keeps unscrewing, so I figured a Record #04 would be a good idea. Wouldn’t cost that much (and it didn’t, it came to about €30 with shipping) and it’d fit better (it does). I can keep Sid for really heavy work and use the new #04 as the workaday scrub instead. It was in much better condition than I thought it’d be mind you.

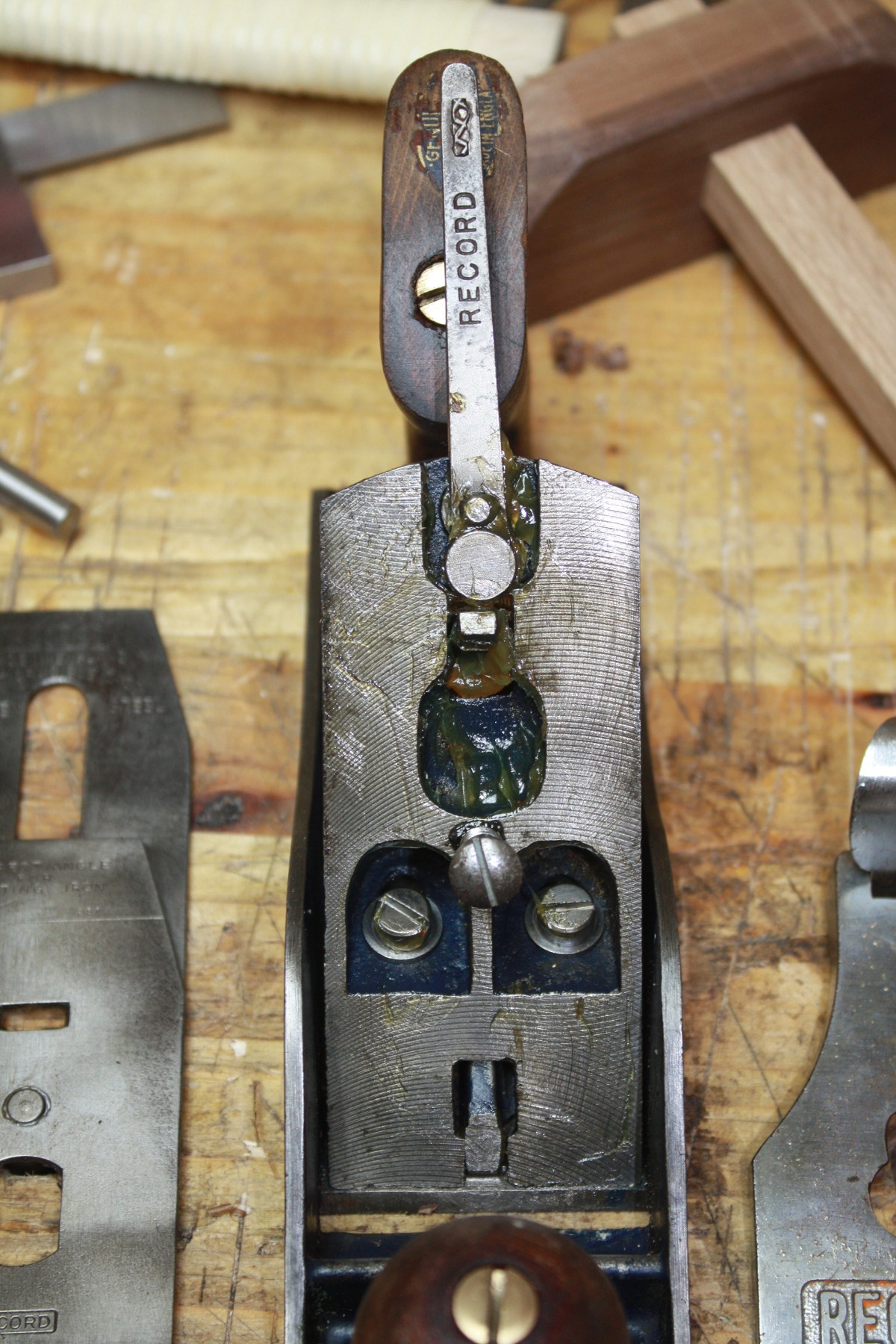

Needs to have the cosmoline gunk taken off the frog and the blade reground to give it a camber, and I might need to file the mouth a bit wider but other than that it should be grand.

It’s a bit shorter than Sid, but oddly, it’s also a bit shorter than my other #04, which is from the same vintage as far as I can tell from blade and frog and adjustment levers and so forth:

That’s a little weird. But okay. And as a bonus, I can finally clear out the interloper from my plane till…

…and just go full Record 😀



Anyway, on to veneers. I thought I’d found a source for constructional veneer…

Colour’s excellent; but the thickness is still 0.6mm 🙁 I’ve glued up two layers between two clamped sheets of MDF to see if I can build up a thicker veneer. In the meantime the search for better veneers goes on.

Mind you, it doesn’t look *terrible*….

The single thickness isn’t great as there’s a very visible gap beside it:

A double thickness isn’t too bad, but still not perfect.

And I need something to actually put stringing into, so…

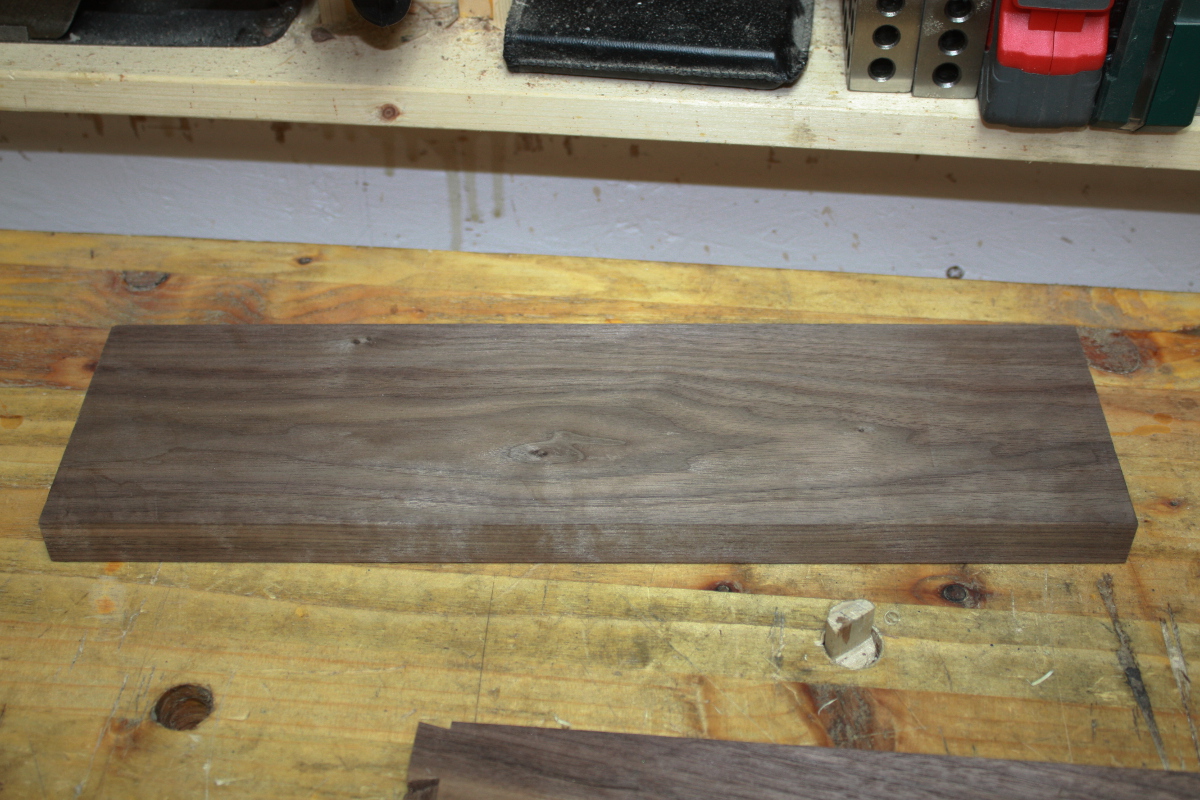

Simple housing joints for the shelf, I’ll dovetail the back rails in tomorrow, and that’ll give me some large areas to try stringing on.
