Toothy prep

Well, that decided where to start for the evening I guess. I ripped the panels first, and then changed the blade because it was just wandering too much, and then cut the rails to approximate thickness and the stiles to rough thickness and straightened.

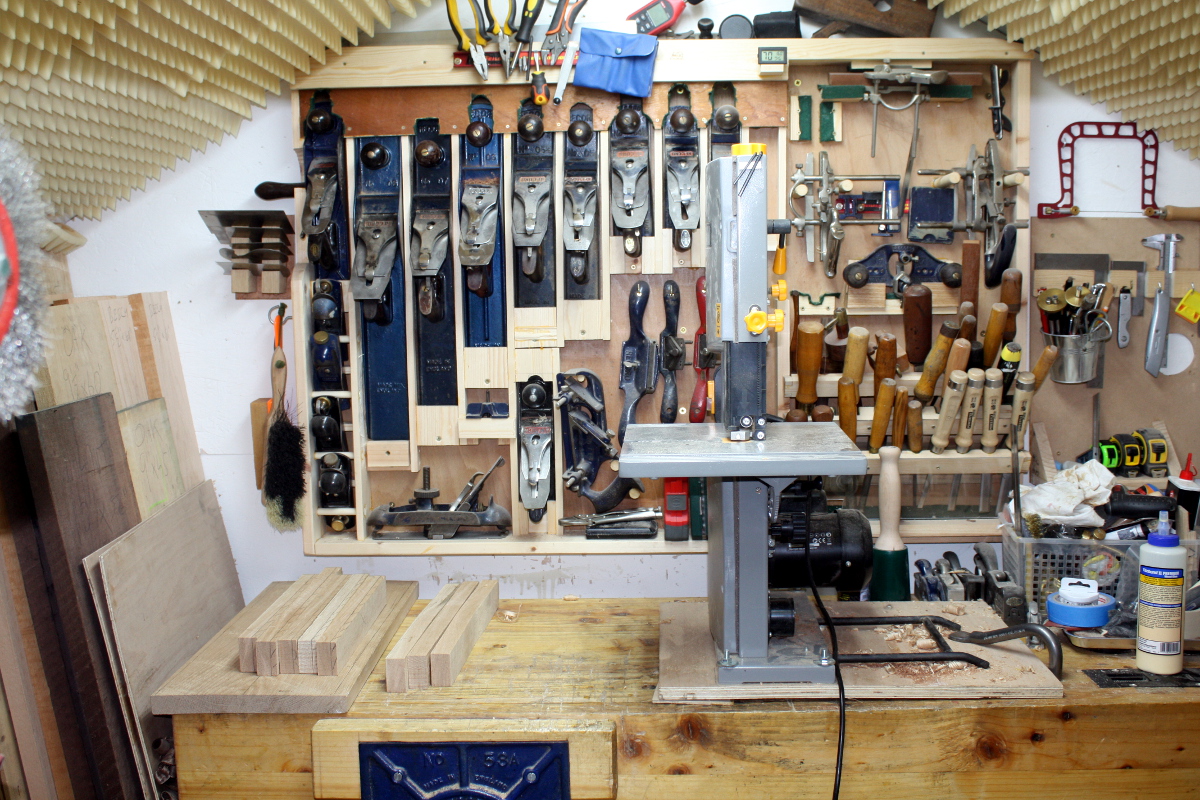

Before:

After:

Bunch of small thin stock gathered as well. I’ll leave that dry on its own, see if it stays unwarped.

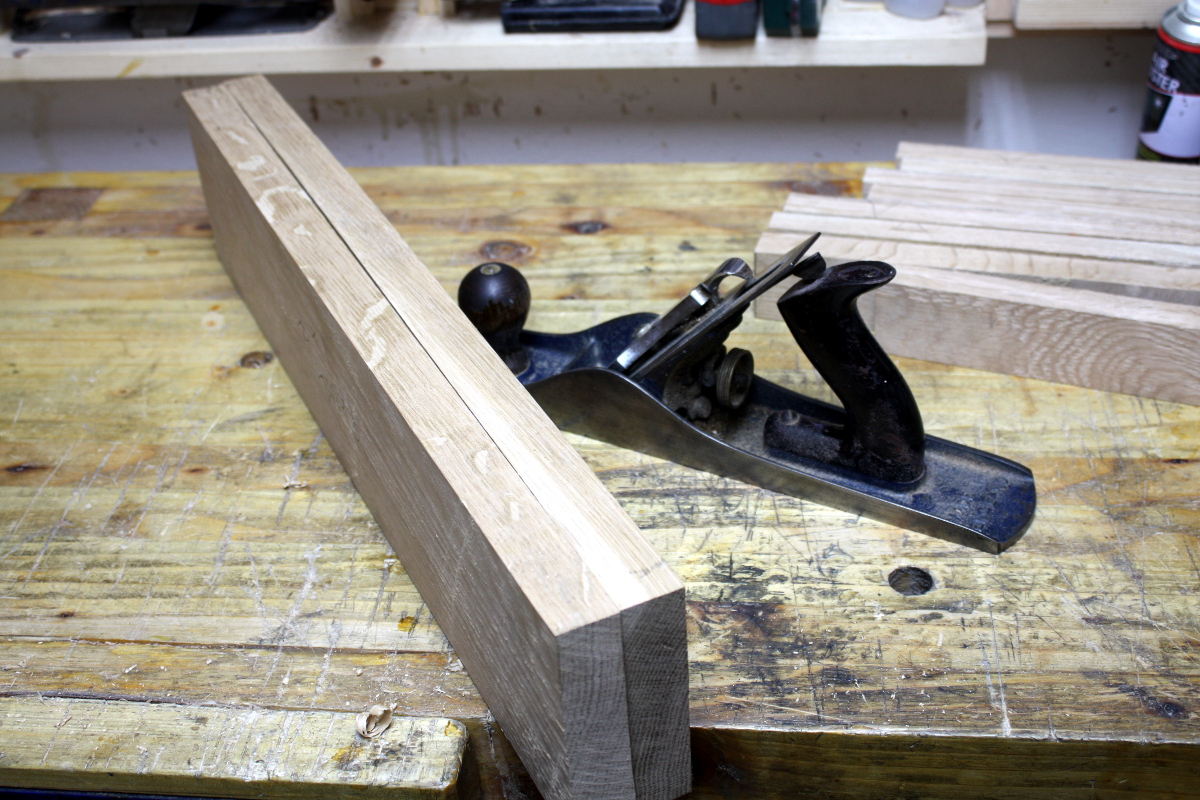

Then on to cleaning up edges on the panels.

And then checking to see if I have enough width on the panels…

Yup, all good. Just resaw those and it’ll be grand.

Then on to cleaning up the faces of the rails and stiles. Started on the stiles and on the first pass it became obvious there was a problem.

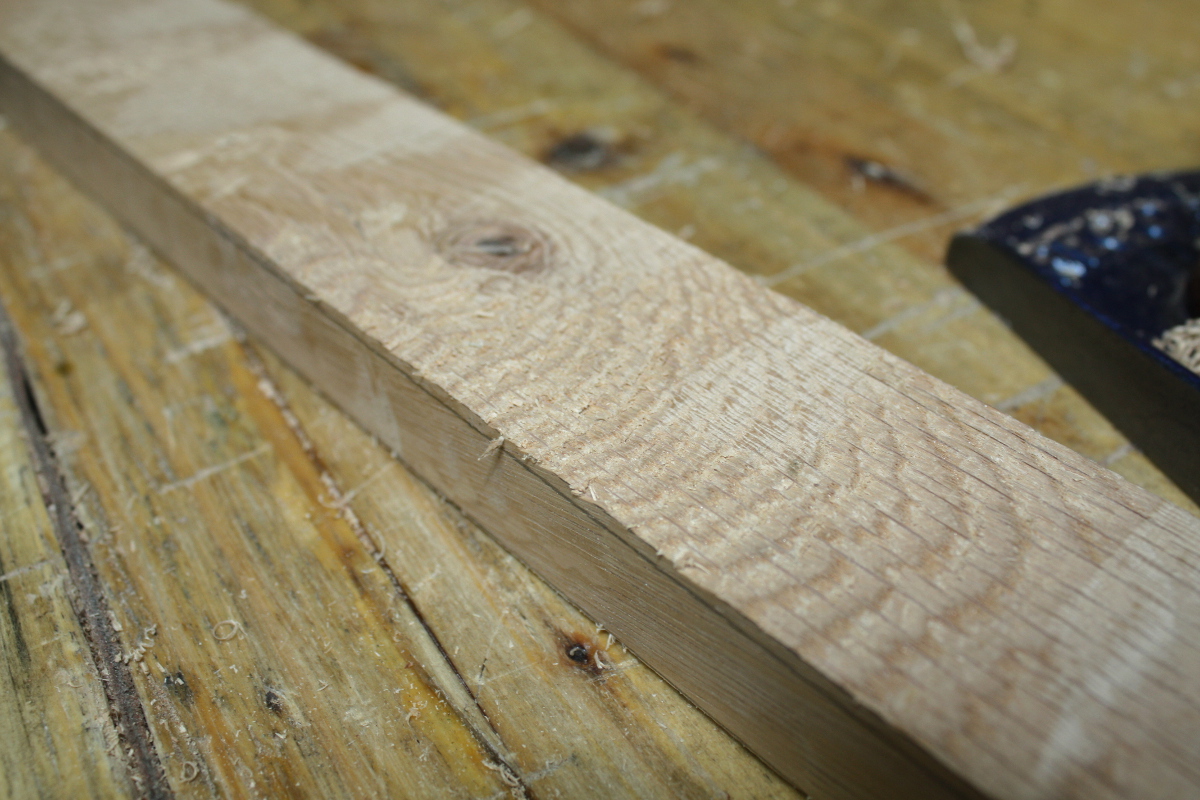

Even a close-set #5 left huge tearout, really nasty stuff. So, time for the secret weapon.

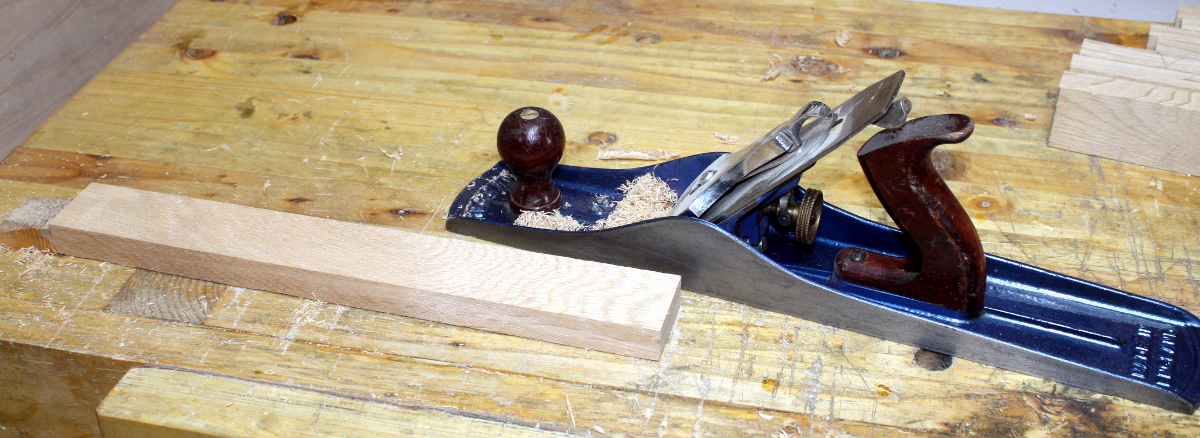

Meet my new #6 toothing iron 🙂

Thing about these is, they leave a shitty-looking ridged surface, you’re never getting a clean finish with these things – but you also never get tearout.

So you can get the board flat with this, then come back with a tight-set smoothing plane and scrapers later and clean the surface up.

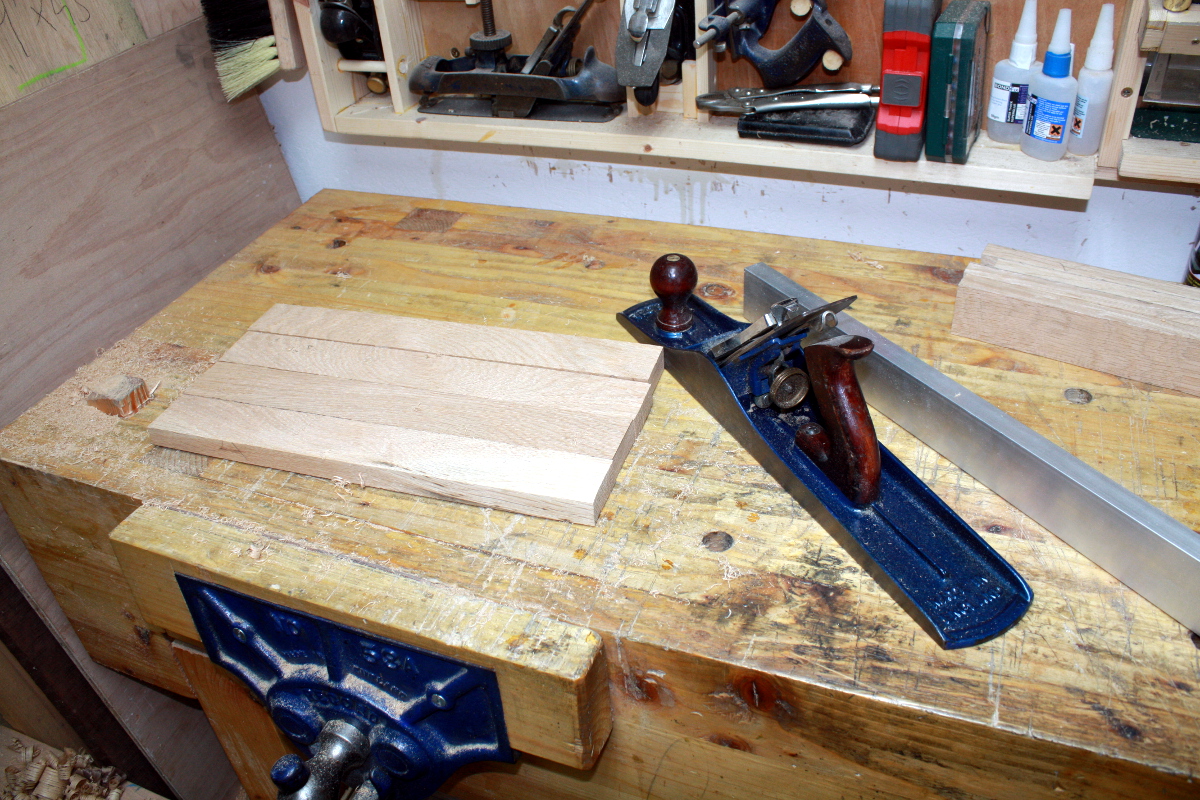

So got all the rails and stiles processed that way.

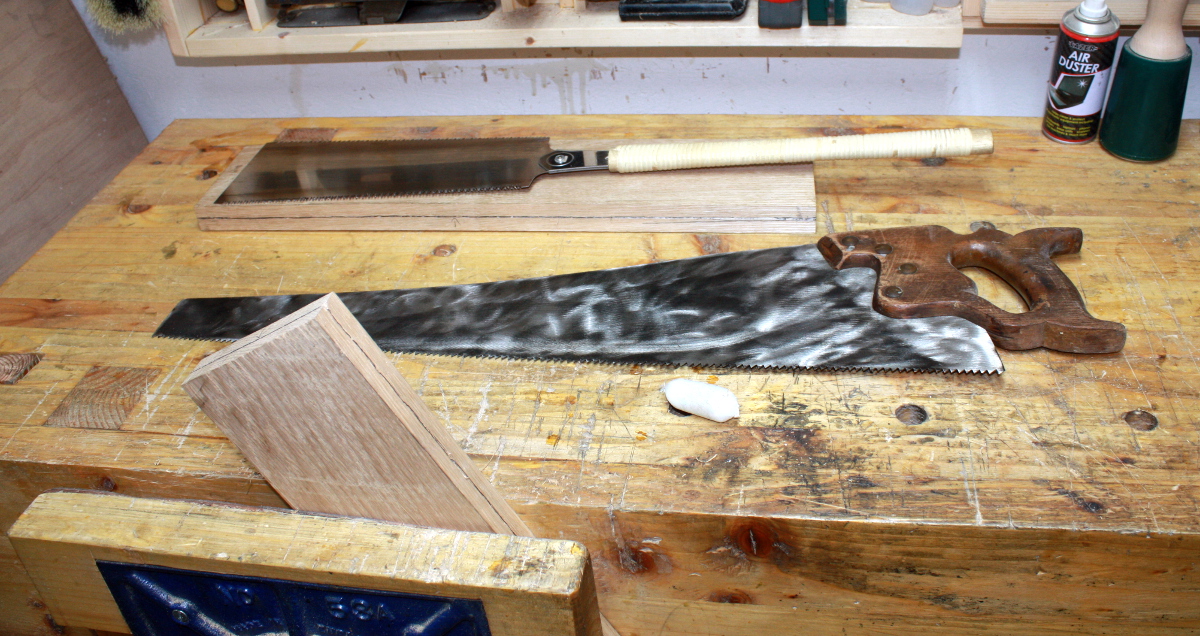

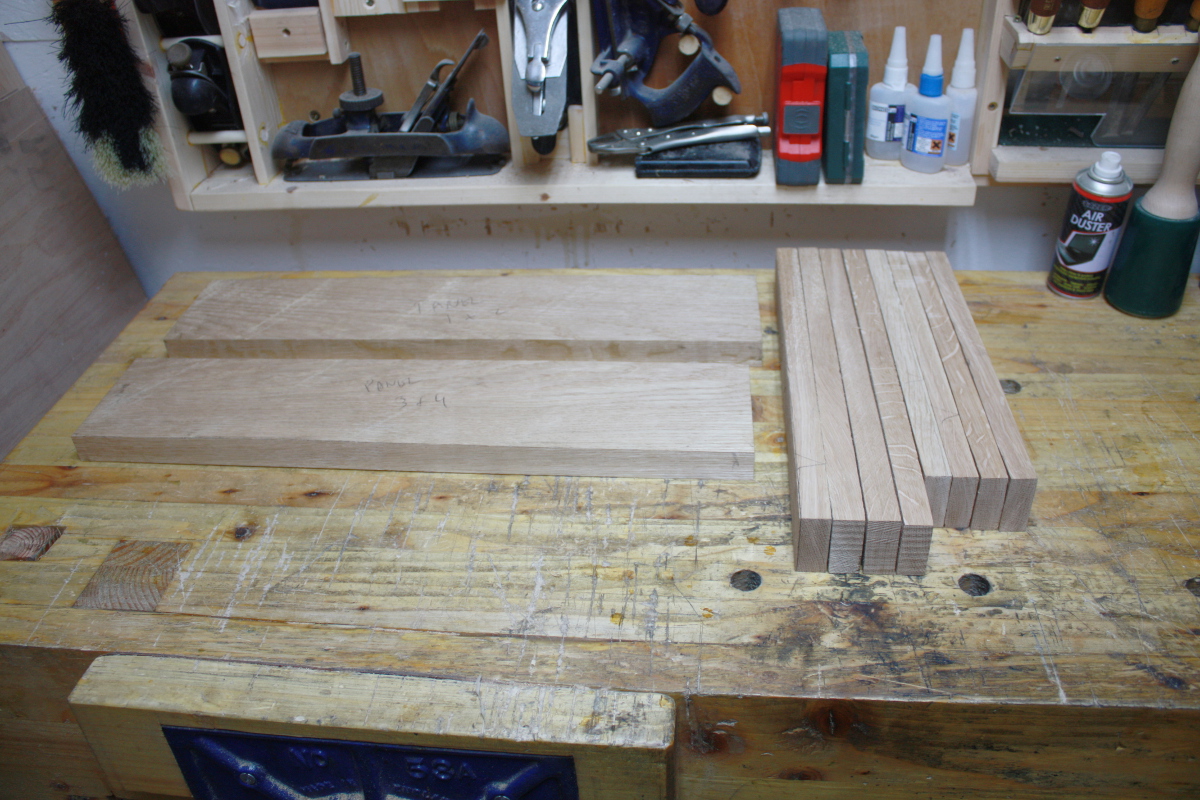

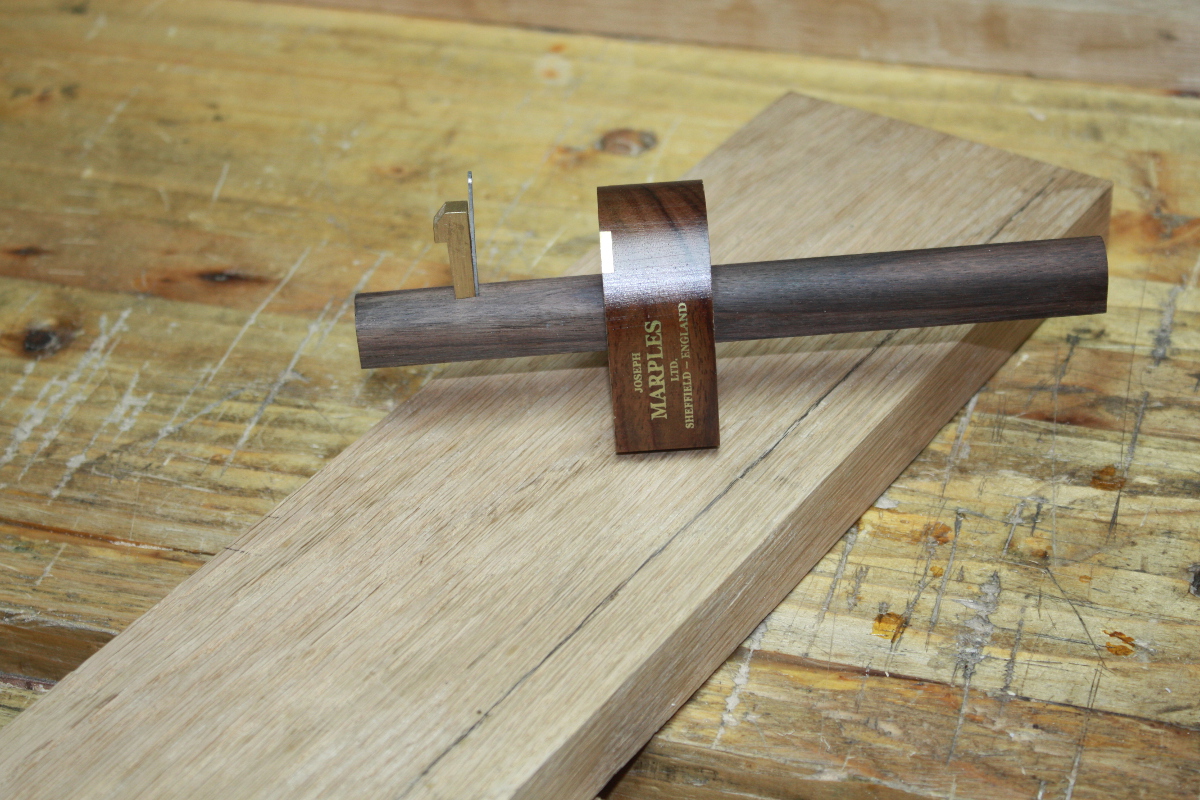

All set. Just resawing to do, but now it’s 2130h so I just marked up the resawing with a cutting gauge and called it a night.

Not sure if I’ll use the ryoba or the rip handsaw. Might try the handsaw first.

I still have to sort out what I want to do for a lid, I need to check my stock and have a think. The floor will be cedar for the nice smell, I have some set aside for just that purpose for the last year or so.

Oh, almost forgot, dove into Lenehan’s pick-n-mix…

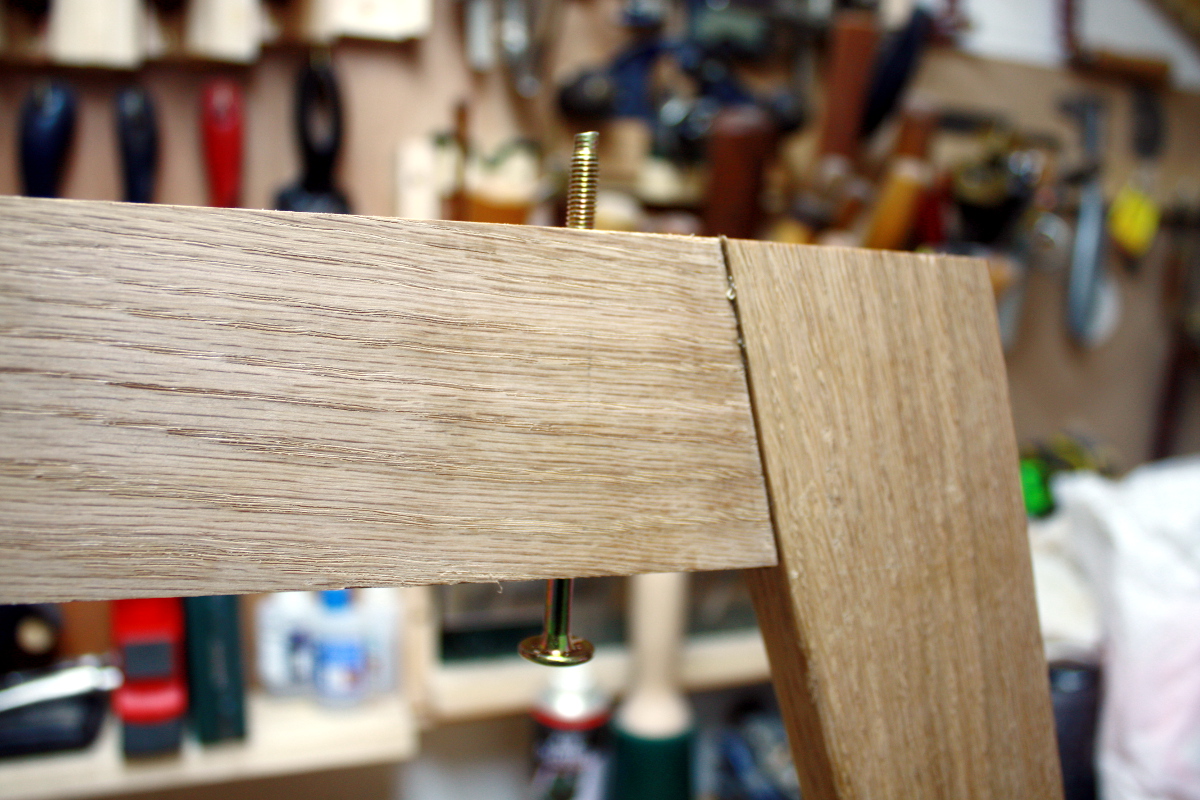

Score. I’ll have to trim off 25mm or so with the dremel and tidy it up with a file, but that beats a bolt that doesn’t reach the tabletop fully. Now if the inserts would just arrive I could get on with the table build. At this rate, if I can resaw one panel board per evening, I might be ready for joinery on the chest by the weekend and if the inserts get here, I might be ready to start finishing the tabletop by then as well. That’d mean both would be ready by the time I want them ready.

And I’ve a bandsaw box I want cut over the weekend as well, but that should be much faster than before now that I have the bench sander.

Tags: , , , , ,

2 comments

  1. Tony SheehanNo Gravatar

    Interesting to see the toothed plane iron in action.
    Can I just ask- what’s with the strange looking appearance of the rip saw blade, is it maybe the result of cleaning?

  2. Yup Tony, it was in pretty dire shape when I got it and I took a wire wheel to it to get the worst of the rust off.
