Branding

So, lots of people who make stuff in wood (going back a few hundred or more years) made a mark on the stuff they build (assuming it’s good enough). Usually in an out-of-the-way place, even one where you’d have to disassemble the piece to find it; like signing one of two faces before you glue them together.

Sometimes it was a simple stamp made with a metal stamp and a few taps of a hammer:

Sometimes it was a paper sticker, and sometimes it was branded:



This wasn’t done out of the same sense that triggers graffiti by the way – some guilds from the 17th century onwards made it mandatory to mark every piece a workman made. Not every guild, but enough that it was considered commercial rather than odd or vain.

Well. Not vain for them 😀 For me, it’s pure vanity, but sod it, it was fun. And these days with 3D printing and CNC milling machines, it’s no longer a very expensive process involving difficult custom forging, it’s dropping €30 to €40 on a guy on etsy and giving him a design and waiting for a package to show up in the post three weeks later from Hong Kong. Living in the future has some benefits 😀

So here’s the design:

Not terribly big or fancy (by today’s standards – I suspect you couldn’t readily make this back in the 18th century). M for me, big C for herself indoors, in a venn diagram with a small c for junior in the middle, a common baseline and a random tangent forming an acute angle. So it’s uber-smarmy-symbolic is what I’m saying 😀

But who cares? I have my own branding iron 😀

Simplicity itself to use – hold by handle, point blowtorch at head until hot enough, press onto wood and rock back and forth slightly, quite gently, and you leave a mark in about ten seconds. I don’t think it’d cope with any kind of high rate of production, but that’s fine, I don’t produce stuff very fast 😀

Yes, I’ll brand that sapele, no I won’t be doing that today. Have to finish working on it first.

That’s not too bad, it’s almost discrete 😀

And nice and clean lines too. Have to admit, wasn’t sure it’d come out that well, didn’t know how good the brass CNC milling machines had gotten. But no, it came out fine.

Now I just need to buy a bigger blowtorch. The creme brulee torch isn’t cutting it 😀

Cleared the bench…

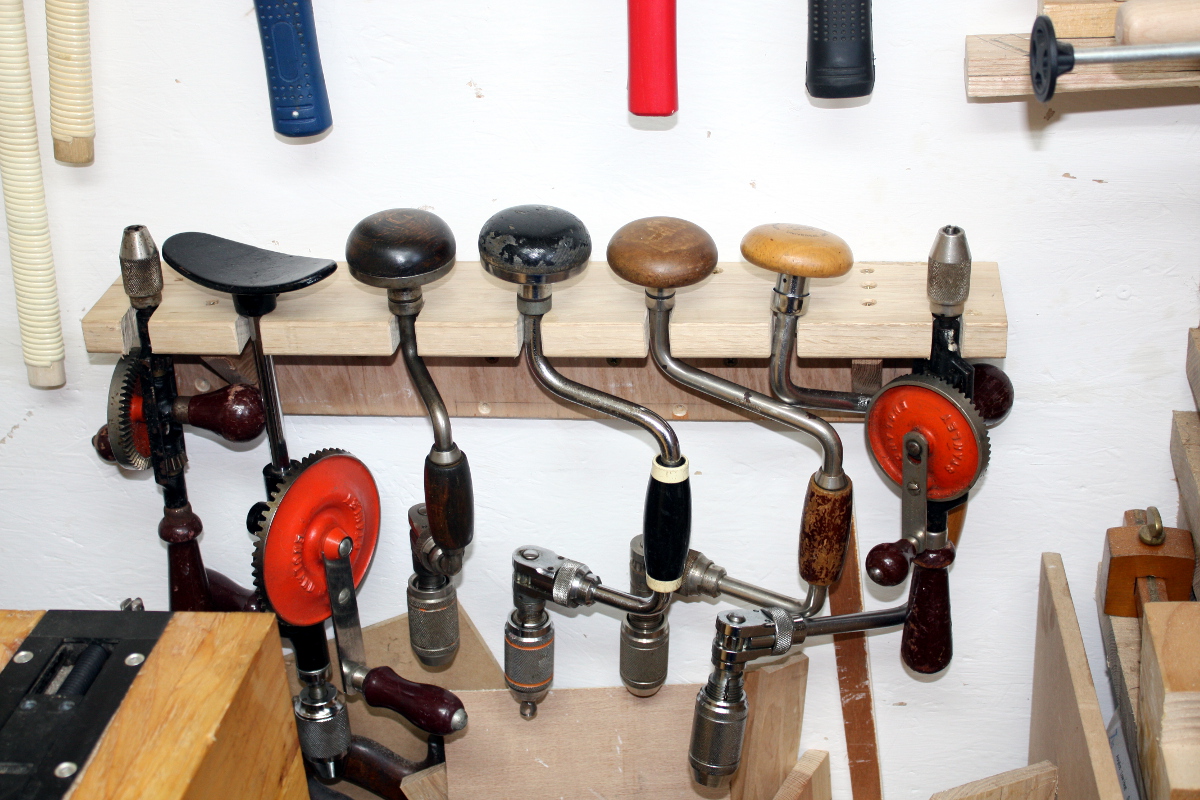

Finally got the last of the tools off the bench and onto the wall by building a small holder for the drills from a hardwood offcut and some recycled plywood. And managed to get a rebate and some stopped dados in as practice 😀

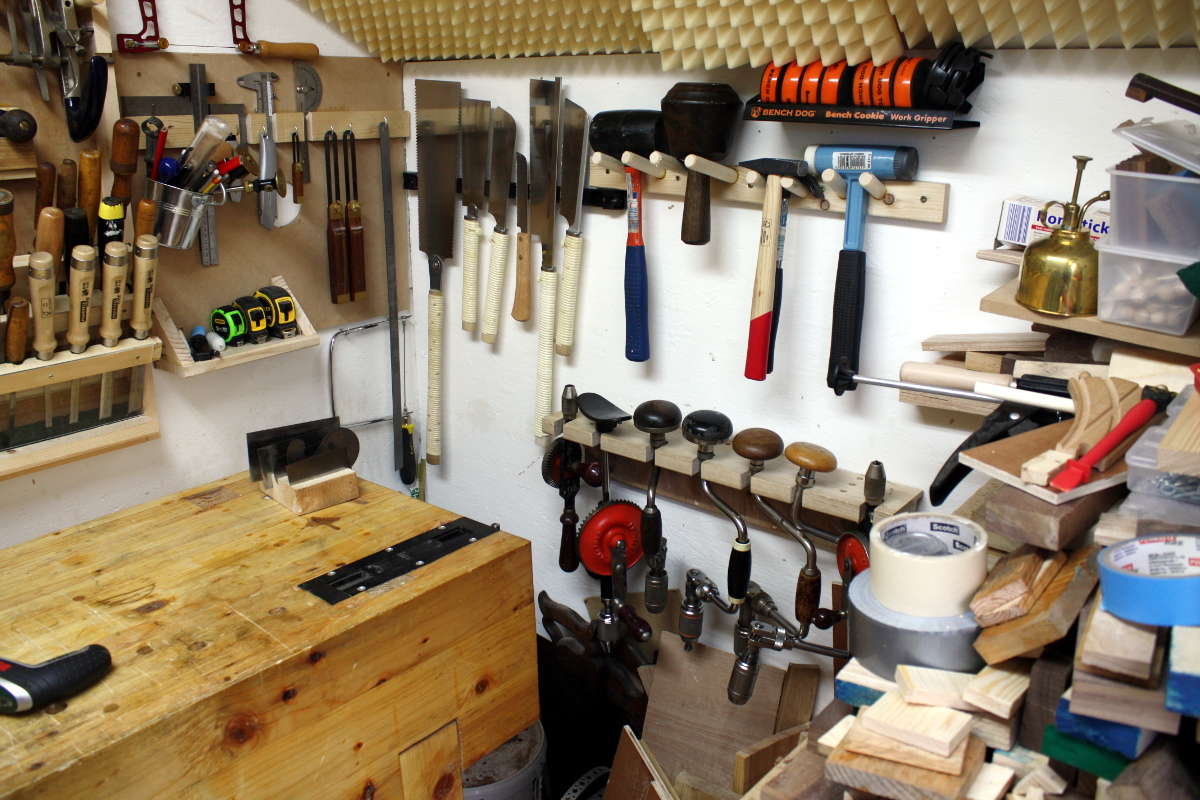

The shed is now finally looking like a proper workshop. I mean, it’s not done yet – the western saws need to go up on the wall too (another magnetic tool rack for them I think, and mount them below the japanese saws – lidl didn’t have any left so ebay it’ll be), and I do need to do something with the grinder and the airbrush, which will probably mean french cleats of some kind and probably redoing the mounting board for the grinder. But for now, it’s not too bad.

Yeah, okay, there’s a huge mess to the right hand side. That’s a bunch of boards rough-cut down to components for some small tables I’m going to build, and they’ve accumulated crap on top of them as any flat space does. I’ll have to tidy up the shed during the week.

But at least now I can work on something that’ll actually leave the shed instead of living there until I recycle it 😀

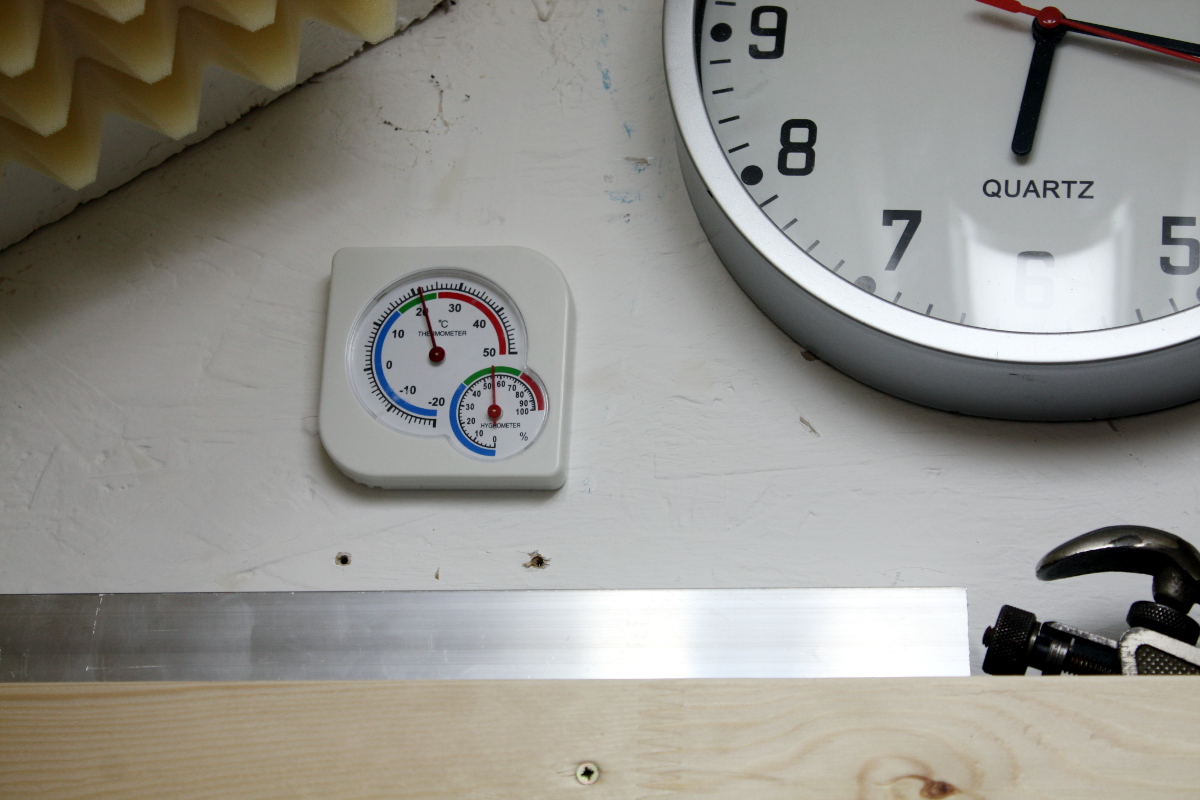

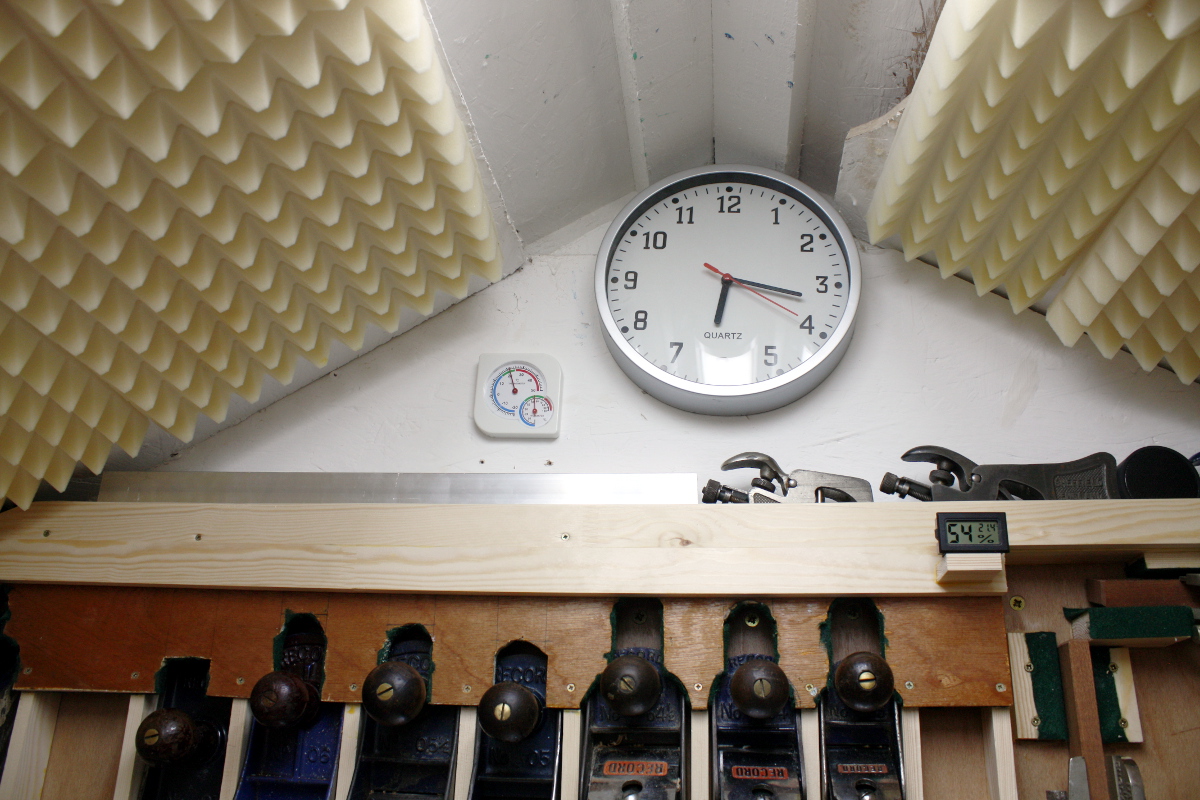

Oh, and a new moisture meter and thermometer as well. No huge reason for one, I just came across it while buying something else on aliexpress and it cost just under two euro shipped so what the hell.

Racked

It’s been one of those weeks where you don’t get a huge amount of time in the shed, but the chisel rack is finally done. And I have new toys…

The breast drill was in spectacularly good condition for something made somewhere in the 1950s. And used too, there are small marks here and there on it that say this thing wasn’t living in its original packaging until now. And with it, that’s almost all the hand drills I want (I wouldn’t mind a small push-drill for very small holes, 2mm and below, but I don’t need that for anything in the immediate short-term future; but for some tasks, like alignment pins for glueups, a 2mm drill and toothpicks are useful). But for now, I have two eggbeaters, a full set of braces and the breast drill in between the two (there’s a progression through the drills depending on how big the hole diameter is and how hard it will be to drill – you start with the eggbeaters up to about 5mm, then the breast drill from 5mm up to about 10mm, then the braces from then on, using larger braces as you need more torque. There’s some overlap rather than hard dividing lines, but it’s a decent rule of thumb).
And I can have drills dedicated to countersink bits as well, which speeds things up.

And I bought some slightly more specialist gauges as well.

Up top, a grasshopper gauge, which gets used to mark things when the reference face is a bit awkward to get to, and on the bottom is a panel gauge for glued-up panels (made from mahogany so it’s fairly old as well).

But about that chisel rack. The idea was to try to get all the chisels I use up on the wall, along with the gouges, and the usual design, the one I used until now, has disadvantages.

So this is grand if you have space, but if you are limited to 18″ or so of width for the chisels, you can’t get quite so many in and while you can stack them as shown here, you have to stagger them out away from the wall, and there’s not much room for that in my shed. And they have a weakness in that there’s short grain between the holes, so unless you make them from plywood or a more durable hardwood, you can snap out the between-holes chunks pretty readily (either while making them or while using them). And most of my shed stuff is made from fairly cheap pine bought from wherever was handiest (so usually Woodies, and their pine is terrible). So I wanted a design that let me stagger racks without having to come out more than three or four inches from the wall and which avoided the short grain problem.

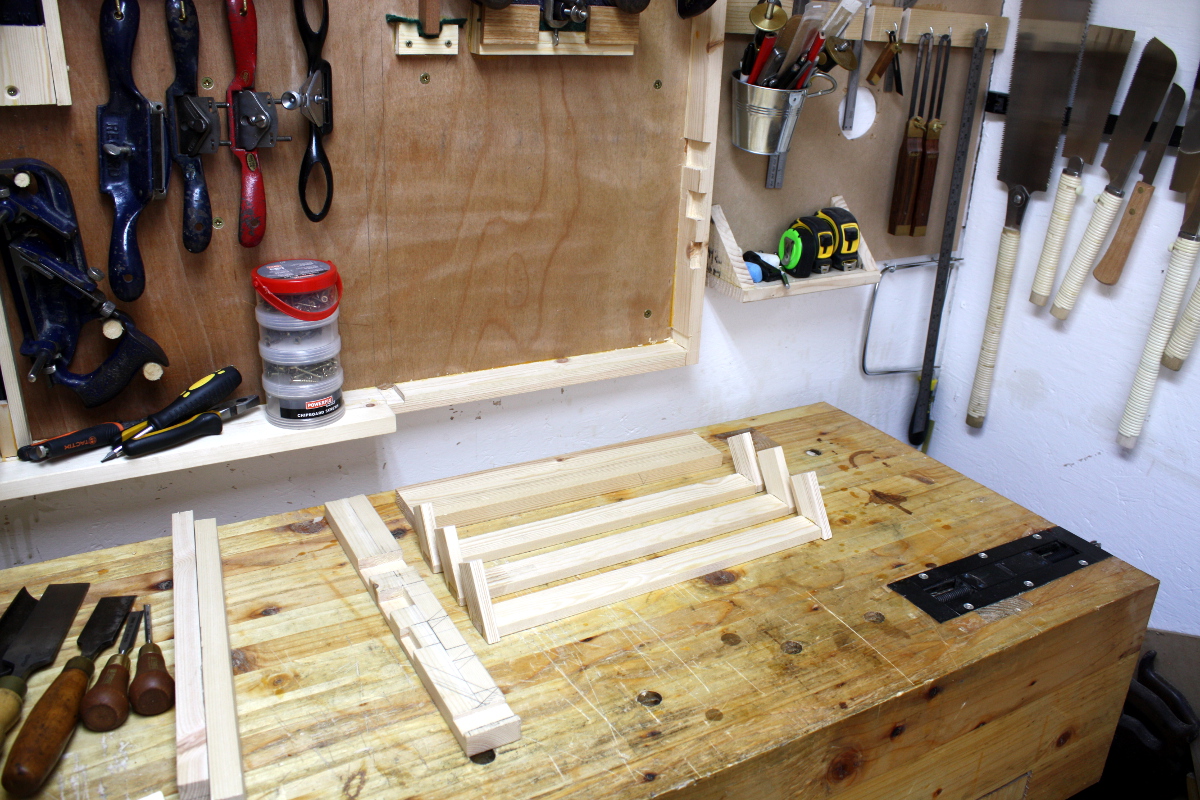

So here’s the idea:

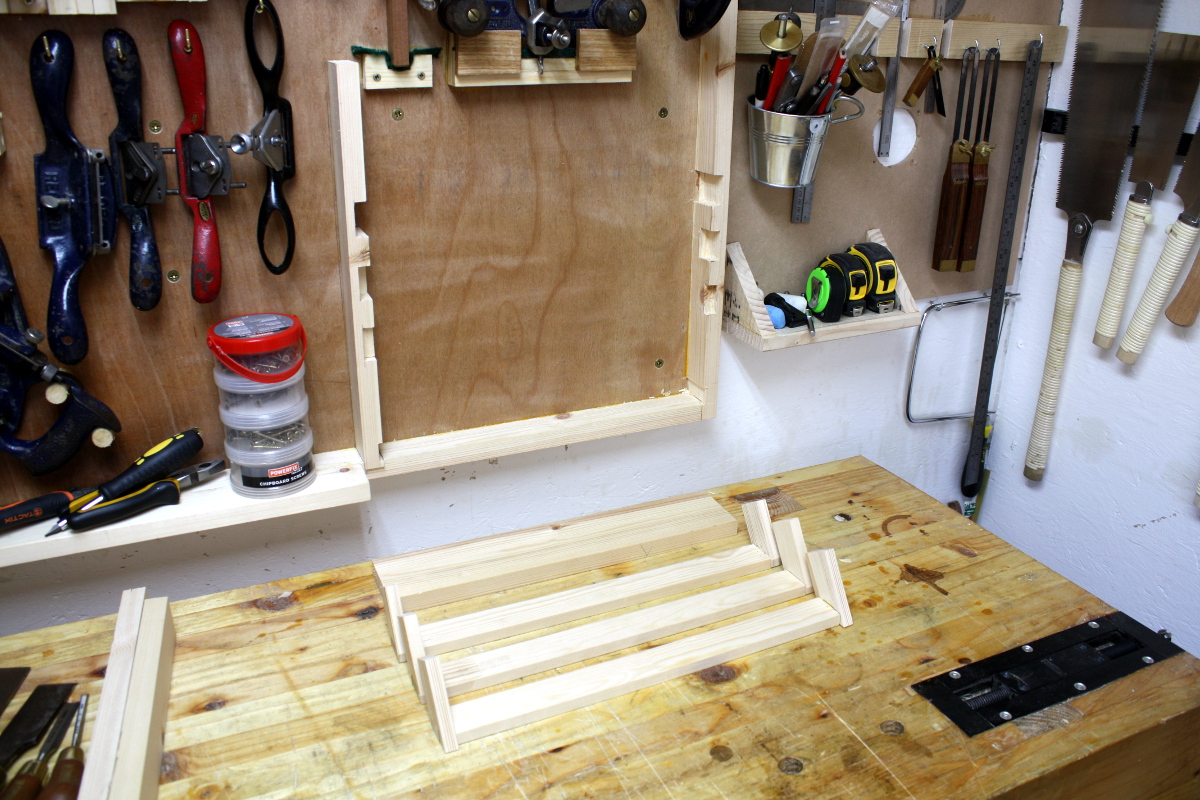

You have a short length at an angle, you put small cut-blocks behind it to keep the chisels sliding to the left or right, and you have something on the wall that the edge rests on.

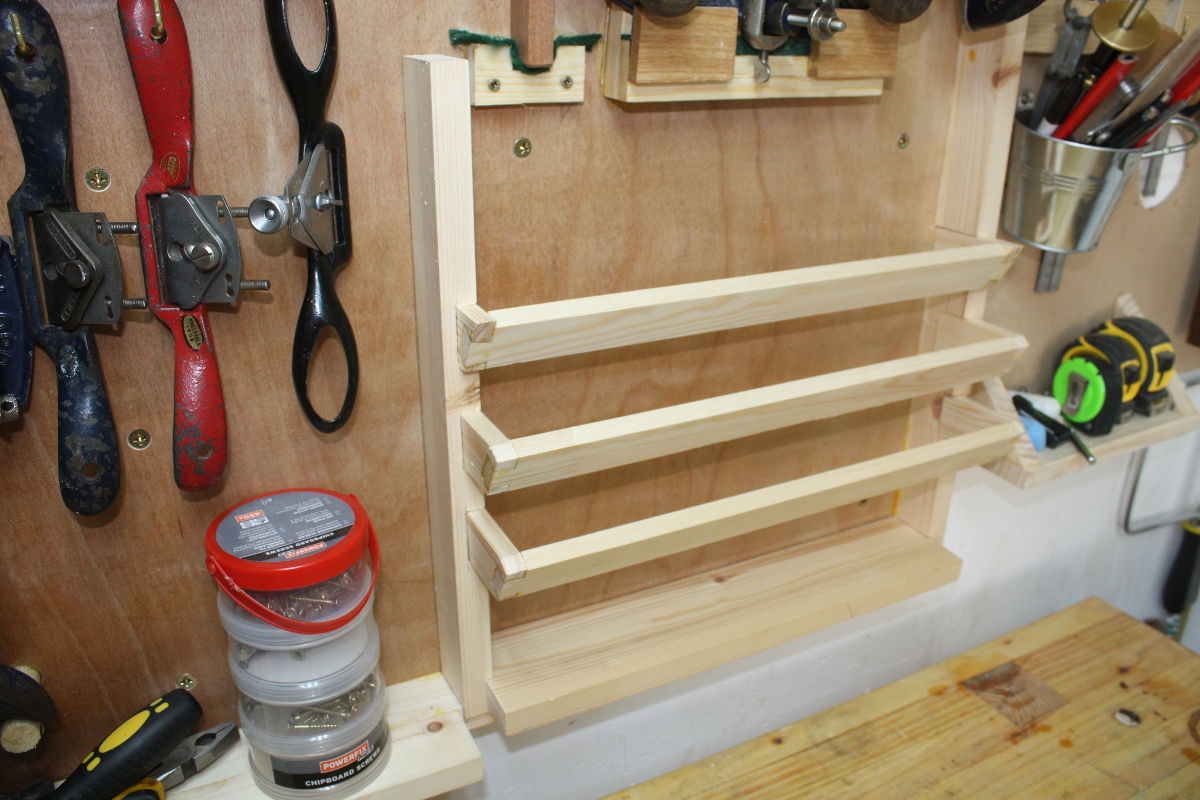

And now we just need the shelf-like things on the wall for the edges to rest against.

The edges are angled and covered with felt so that the edges hit them at around 90° and don’t destroy the edge too much. I also put some perspex in front of the chisel racks so I couldn’t accidentally shove my hand into five or six chisel edges if I wasn’t thinking and reached for a measuring tape while facing the vice or some similar whoopsie.

Now, time to load the chisels up.

(And yes, take the time to sharpen and strop each as they go in, because why not?). Bevel-edged chisels first.

Then the firmer chisels, including my new 2″ wide cast steel monster, which is very nearly a slick.

And then the four gouges (there’s room on that rack for a few more chisels yet).

And that’s that done. The racks are held in with screws and the frame they screw into is screwed and glued in place, so if I need to tweak the racks or add new chisels, that should be reasonably easy.
(Note the fretsaw and coping saw got moved on the wall and lidl were selling magnetic tool racks so I cheated and got the japanese saws all up on the wall beside the hammers – the western saws will go below them with the blades pointed down so there’s a “safe reaching zone” in the middle to stick your hand into to grab any of the saws).

And that’s almost all that now. Need to get the scrapers a new holder on the wall somewhere, the old one has gotten loose (well, it was five saw cuts in an offcut from a 2×4). And the drills all need to go up on the wall as well. I have an idea in mind for that, but where exactly on the walls it’ll go I don’t know yet.

But I also have a project I’ve been wanting to do (and gotten a little done on already) and part of me just wants to get the shed furniture bit out of the way as fast as possible and get on with that, but with all the tools in the way, that’s going to be a tad difficult 😀
Plus, having the saws and hammers literally at my fingertips has sped things up at the bench far more than I thought it would. So having the drills to hand would be worth the effort.

I just need to figure out where the hell they’re going to go, I’m running out of wall…
